Removing Wheel Bearing Housing

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

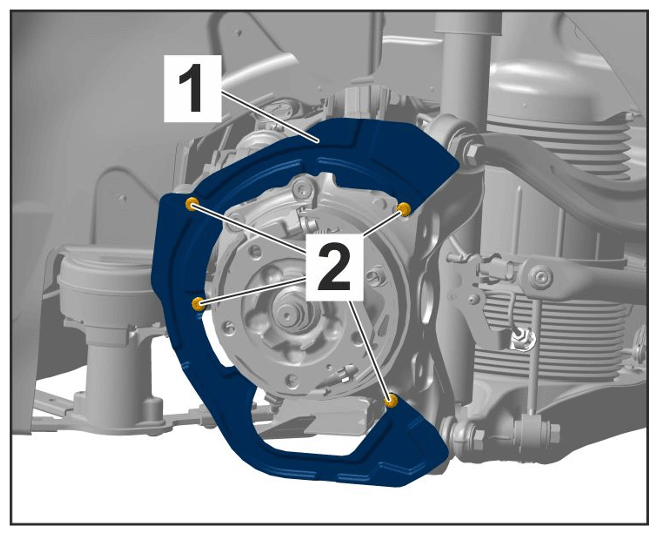

  1. Remove brake cover panel -1-  .
    G15856519Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for brake cover panel

    1. 1.1 Unscrew fastening screws -2-  .

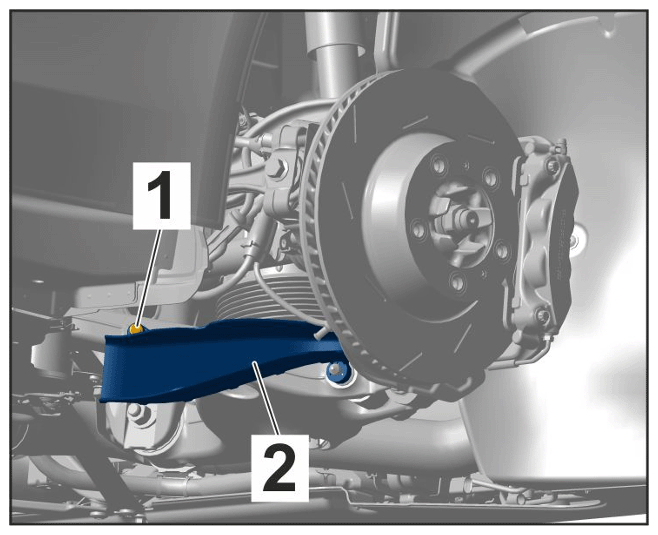

  2. Remove control arm spoiler -2-  .
    G15856520Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Control arm spoiler on trailing arm

    1. 2.1 Unscrew fastening screw -1-  .
    2. 2.2 Pull control arm spoiler lug off the shock absorber threaded joint.

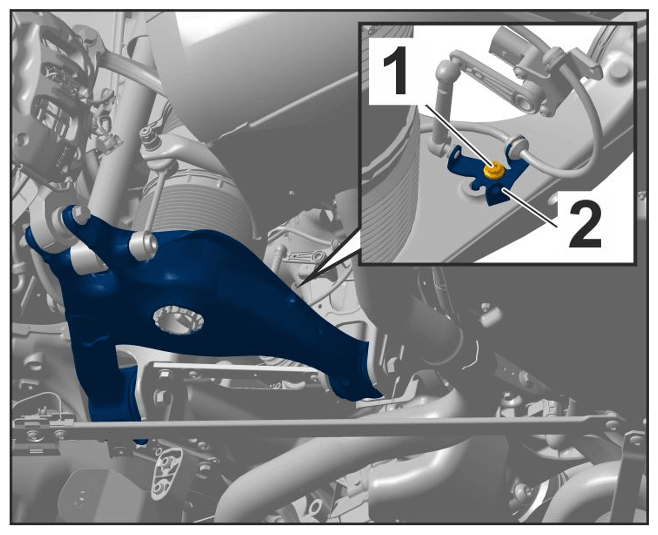

  3. Loosen holder for level sensor -2-  from the trailing arm.
    G15856521Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for level sensor holder

    1. 3.1 Unscrew fastening screw -1-  .

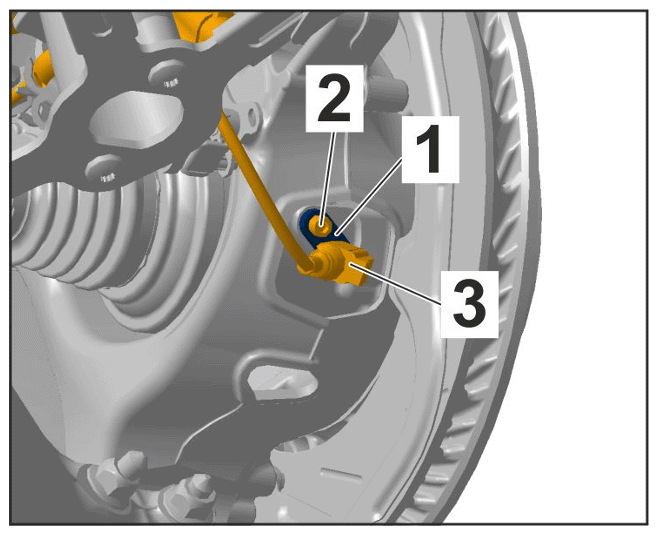

  4. Remove speed sensor -1-  .
    G15856522Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Speed sensor mounting

    1. 4.1 Unscrew fastening screw -2-  .

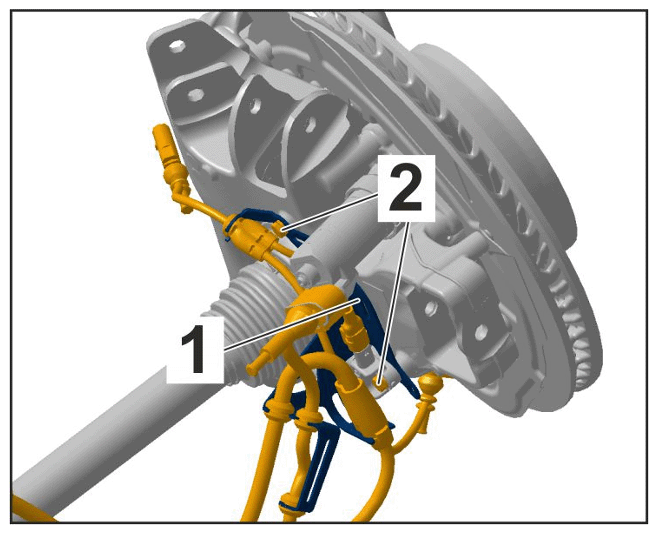

  5. Remove cable holder -1-  .
    G15856523Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cable holder mounting

    1. 5.1 Release and disconnect electric plug connection on EPB actuator.
    2. 5.2 Unscrew fastening screws -2-  .

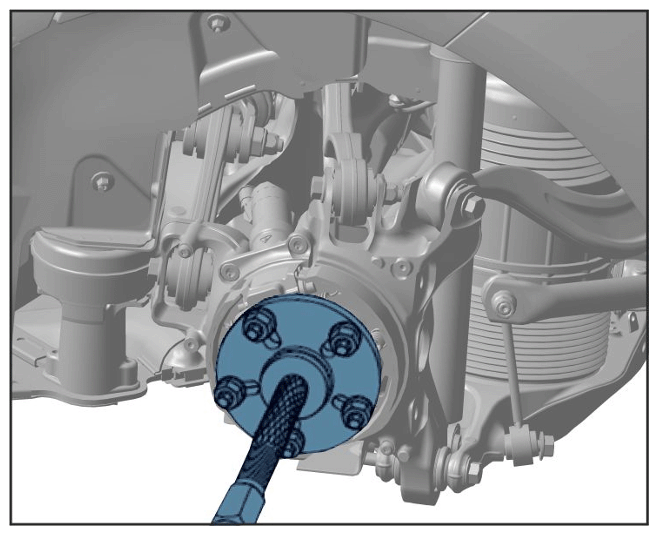

  6. Use > VAS 6926 - Puller set  to press the drive shaft peg max > Control value + 10 mm  into the wheel hub so that the drive shaft splines are no longer engaged in the wheel hub > Pressing in drive shaft
    G15856524Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressing in drive shaft

  7. Loosen threaded joint -1-  slightly (do not remove it!).
    G15856525Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing wheel bearing housing

    Information

    • The wheel bearing housing can tilt outwards.
    • Do not leave drive shafts hanging from the joint stop.

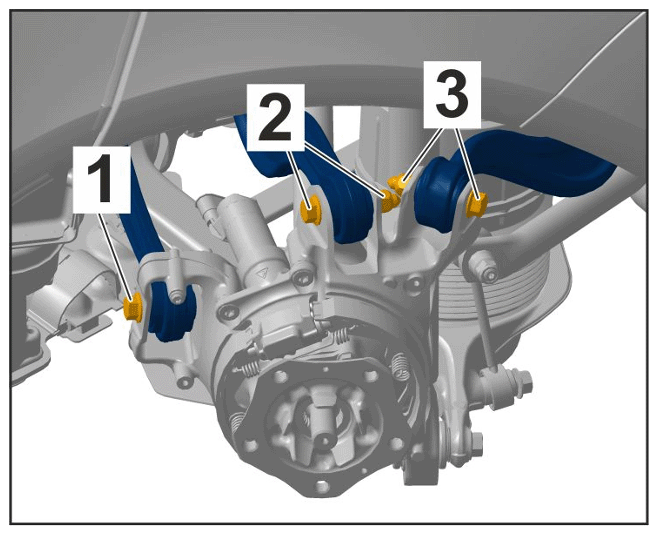

  8. Loosen tie rod and upper control arm on the wheel bearing housing.
    G15856526Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for tie rod and upper control arm

    1. 8.1 Get a second person to hold the wheel bearing housing and drive shaft.
    2. 8.2 Remove threaded joints -1 to 3-  .
    3. 8.3 Tilt wheel bearing housing outwards and tie up drive shaft at a suitable position.

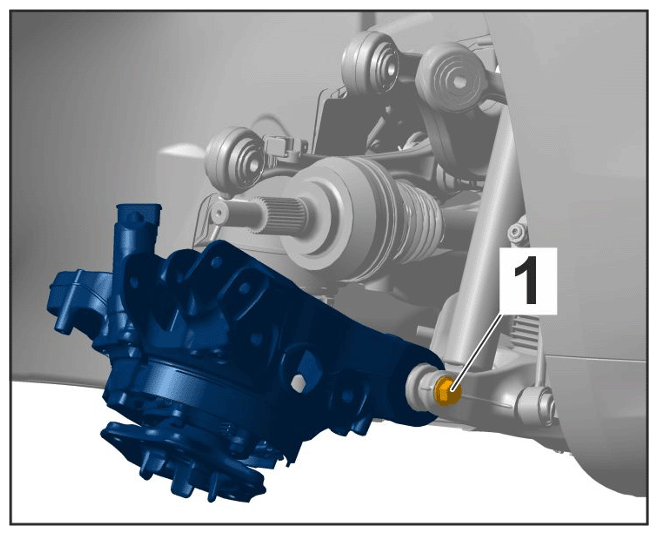

  9. Remove threaded joint -1-  .
    G15856527Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing wheel bearing housing

  10. If the wheel bearing housing, wheel bearing or wheel hub is replaced, the brake shoes and spreader device must also be removed or converted.

    > WM, 468320 REMOVING AND INSTALLING BRAKE SHOES

    > 468519 REMOVING AND INSTALLING SPREADER DEVICE (EPB ACTUATOR)
