Preliminary Work

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the relevant hub cap using > 9229/1 - puller hook  and loosen axle nut -1-  before raising the vehicle. Operate the brake while doing this (2nd mechanic required).

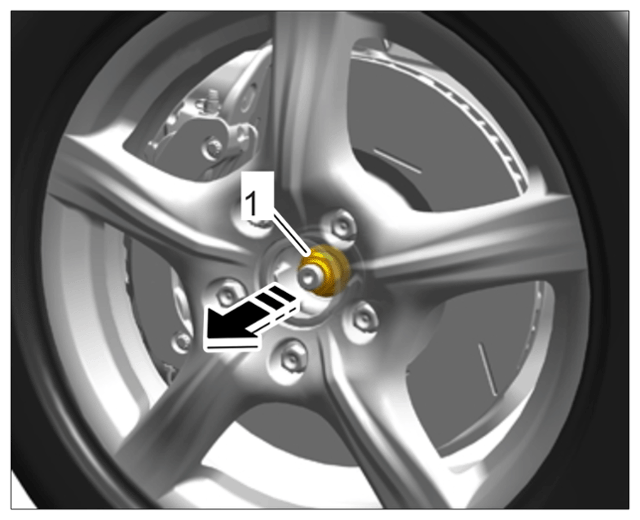

    G15856518Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Axle nut (front axle shown)

  2. Remove rear brake disc.

    > 465319 REMOVING AND INSTALLING REAR BRAKE DISC

    > 465419 REMOVING AND INSTALLING REAR PCCB BRAKE DISC
