Installing Drive Shaft

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Replace shaft sealing ring in the final drive
> Refer to the appropriate Service information for Removing and installing sealing ring for output flange

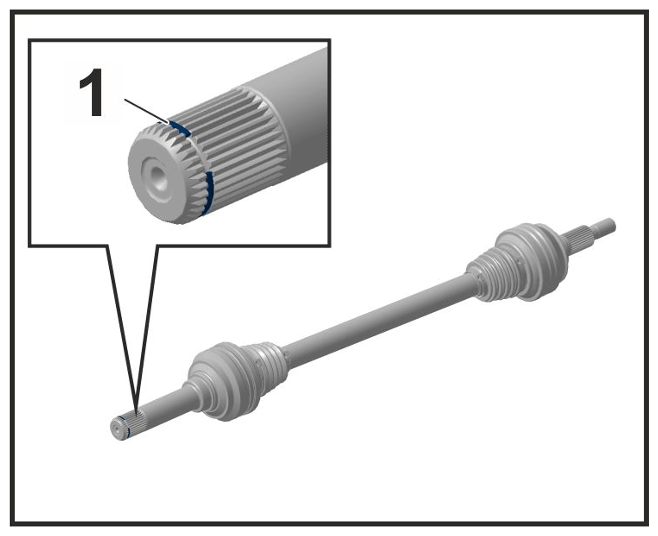

Replace circlip -1- on the drive shaft.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Circlip

Information
- Make sure not to damage the sealing ring when guiding the drive shaft into the final drive.
- Check that the profile splines on the drive shaft and transmission side interlock securely!
- The use of an impact tool is not permitted.

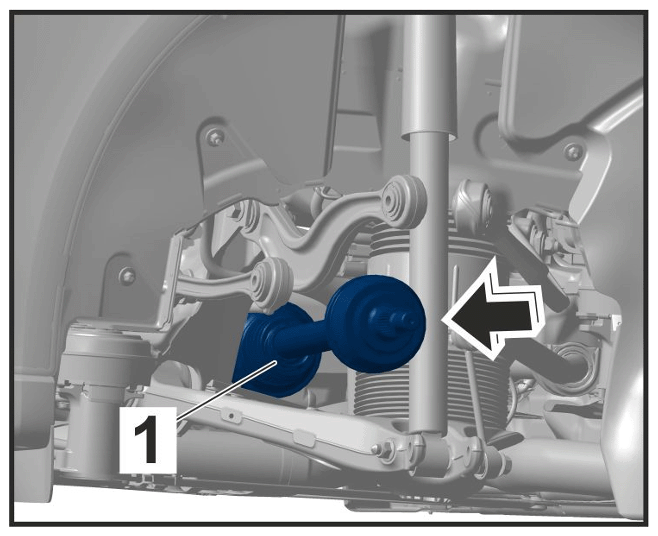

Fit drive shaft -1- into the final drive with a quick jerking movement -arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fitting drive shaft into final drive
Check that the joint is seated correctly in the final drive.
1. 4.1 Hold the joint with both hands and pull outwards.
2. 4.2 If the drive shaft can only be pulled out again using considerable force, the drive shaft is fitted correctly.
3. 4.3 Press the drive shaft back into the final drive if necessary.
