Replacing Hydraulic Mount

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Mechanical, hydraulic or pneumatic press

Risk of squashing
→ Read specific safety information for the press.

→ Check that the press is working perfectly before use, particularly the safety components.

Information

The following tools are required for replacing the hydraulic mount:

> 9895 - Pressure pieces
> T10205 - Attachments
> VAS 6178 - Hydraulic cylinder
> VAS 6179 - Foot Pump
Optional: > VAS 6179/1 - Pressure Gauge with Connection Line

Press out hydraulic mount.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

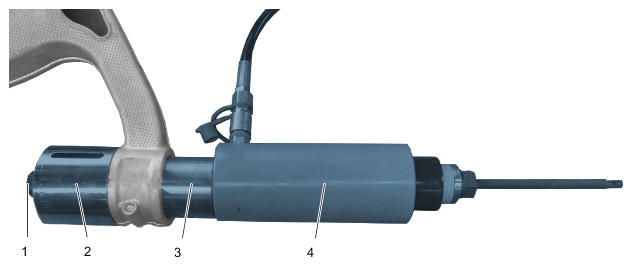

Pressing out hydraulic mount

1	Nut
2	Sleeve 9895-2
3	Pressure piece 9895-1
4	> VAS 6178 - Hydraulic cylinder

1.1 Centre the sleeve 9895-2 and pressure piece 9895-1 on the hydraulic mount.
1.2 Press out hydraulic mount.

Press in hydraulic mount.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

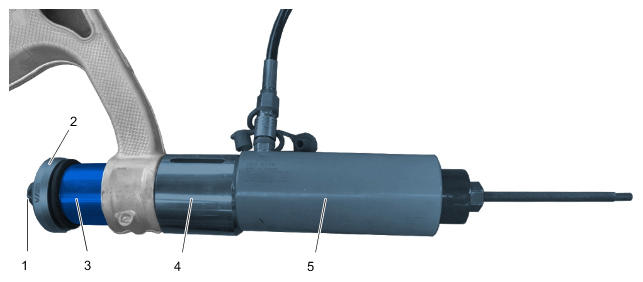

Pressing in hydraulic mount

1	Nut
2	Pressure piece T10205/16
3	Hydraulic mount
4	Sleeve 9895-2
5	> VAS 6178 - Hydraulic cylinder

2.1 Centre the sleeve 9895-2 and pressure piece T10205/16 on the hydraulic mount.

2.2 Align hydraulic mount.

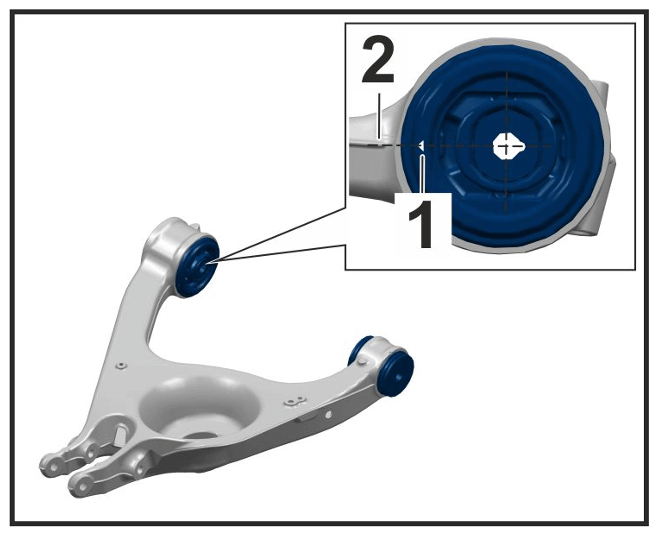

The arrow -1- on the hydraulic mount must be facing the wheel side, at the same height as the seam -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Aligning hydraulic mount

2.3 Press in hydraulic mount as far as it will go.
