Removing Strut (Rear Section)

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove struts (rear section) -2-  .

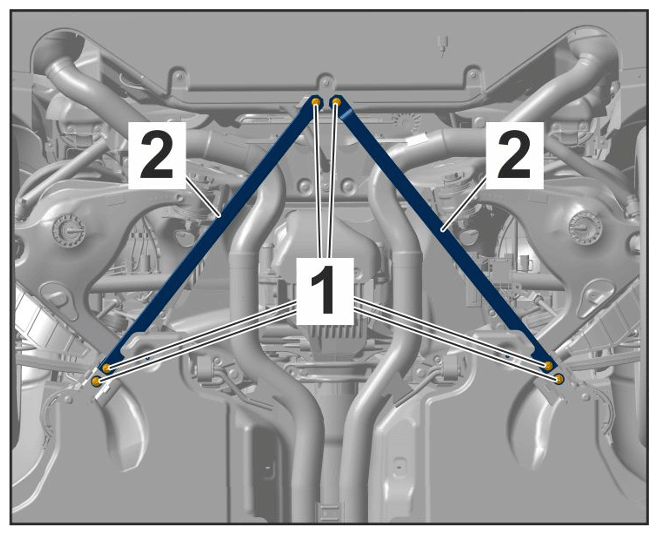

    G15856475Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for struts (rear section)

    1. 1.1 Unscrew fastening screws -1-  .
    2. 1.2 Pull off struts (rear section) -2-  to the rear.
