Installing Strut (All Struts)

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install struts -2-  .

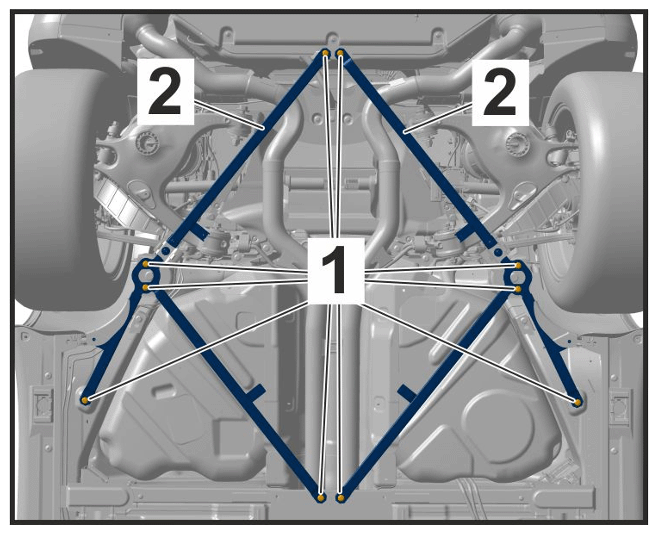

    G15856478Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for struts

    1. 1.1 Tighten fastening screws -1-  > Tightening torque 25 Nm
