Subsequent Work

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Install rear axle housing.
> 420519 REMOVING AND INSTALLING REAR AXLE HOUSING
Install final drive.
> 390119 REMOVING AND INSTALLING FINAL DRIVE
Tighten axle nut -1- on both sides of the vehicle. Operate the brake while doing this (2nd mechanic required) > Tightening torque 460 Nm (340 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

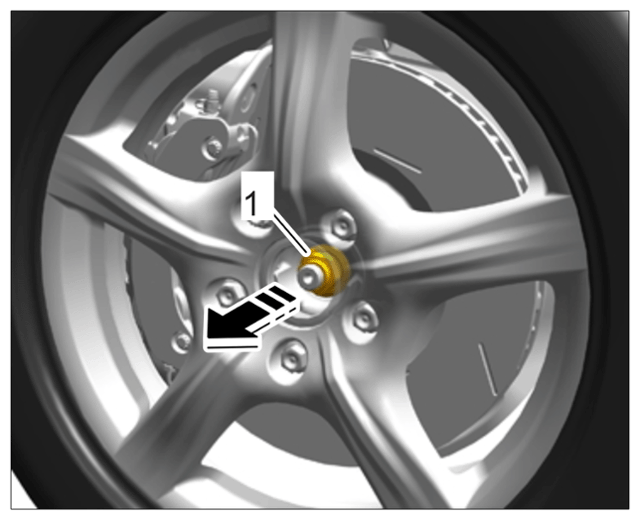

Axle nut (front axle shown)
Perform suspension alignment.
> 449503 PERFORMING FRONT AND REAR SUSPENSION ALIGNMENT
