WM, 420519 Removing And Installing Rear Axle Housing: Tools

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Tool denomination	Type	Tool number	Image
puller hook	Special tool	> 9229/1	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

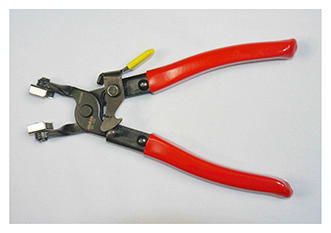

Spring Band Clamp Pliers	Vehicle-specific service equipment	> VAS 6889	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

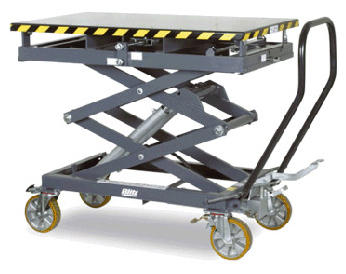

Master Gear unit elevating platform	Vehicle-specific service equipment	> VAS 6832	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

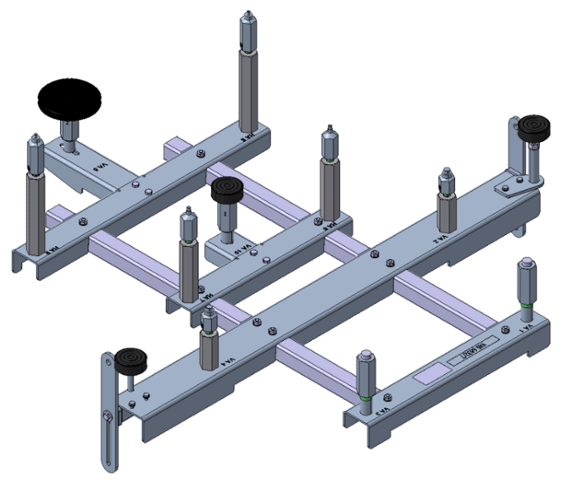

Assembly fixture - Panamera G2	Vehicle-specific service equipment	> VAS 6832/7	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
