Technical Values

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

*Location	*Description	*Type	*Basic value
Rear axle housing to body	Item 1: Hexagon head bolt M14 x 1.5 x 145/Always replace bolts following removal!	Initial tightening	130 Nm (95.9 ftlb.)

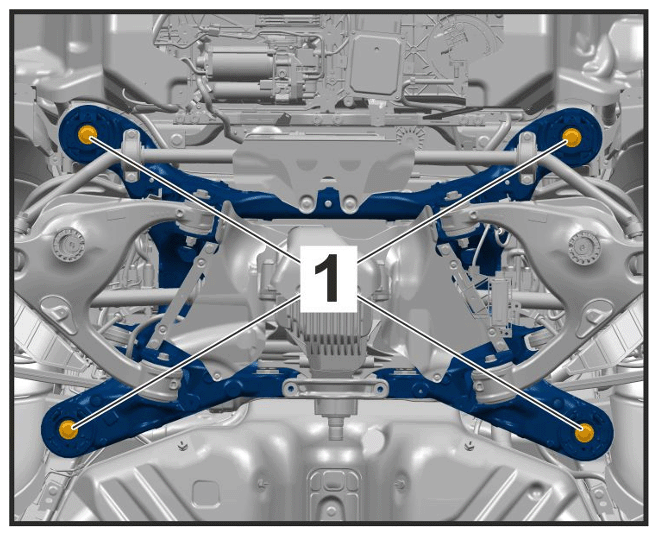

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for rear axle housing
Rear axle housing to body	Item 1: Hexagon-head bolt M14 x 1.5 x 145/Always replace bolts after removal!	Final tightening torque angle	+ 180°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for rear axle housing
Drive shaft protective plate to rear axle housing (right with TPM control unit holder)	Item 2: Hexagon roundhead bolt M6 x 12	Tightening torque	8 Nm (5.9 ftlb.)

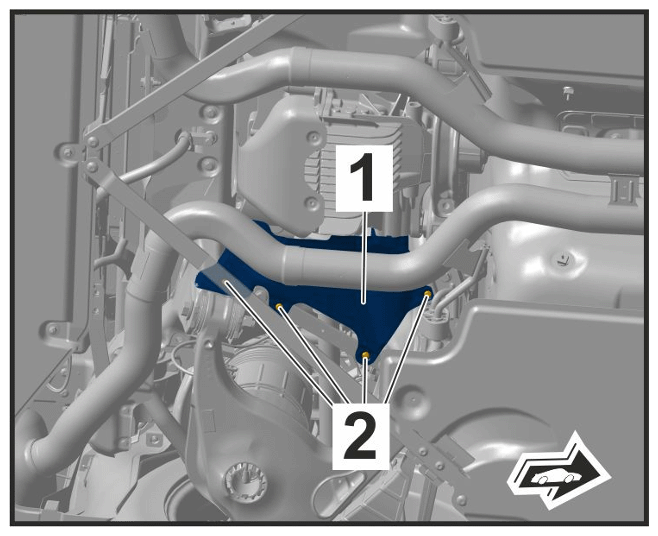

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for protective plate for drive shaft
Bearing protective plate to rear axle housing	Item 2: Hexagon-head bolt M5	Tightening torque	7 Nm (5.2 ftlb.)

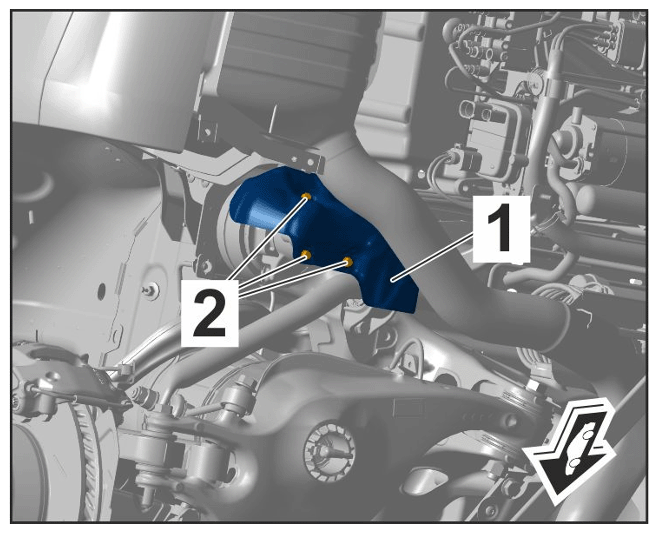

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Protective plate mount
Balancer to rear axle housing	Hexagon-head bolt, M10 x 30	Tightening torque	55 Nm (40.6 ftlb.)
Rear axle strut to rear axle housing mount	Item 2: Hexagon-head bolt M8 x 25	Tightening torque	20 Nm (14.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for rear-axle strut
Rear axle strut to body strut	Item 3: Hexagon-head bolt M8 x 25	Tightening torque	20 Nm (14.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for rear-axle strut
Heat insulation in boot pan	Item 2: Internal hexagon roundhead bolt	Tightening torque	2.5 Nm (1.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for heat insulation in luggage compartment pan
Shock absorber/spring damper to body	Item 2: Hexagon-head bolt M10 x 42	Tightening torque	50 Nm (36.9 ftlb.)

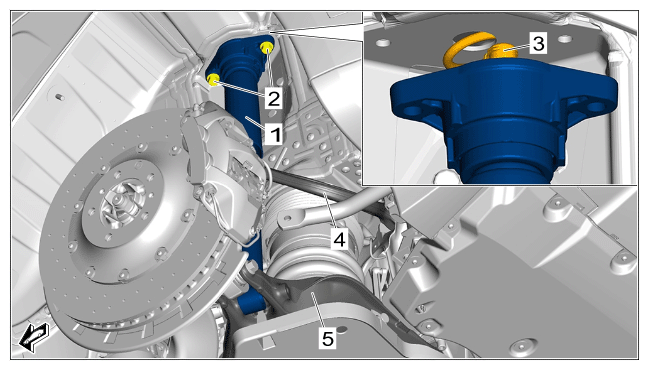

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear shock absorber/spring damper
Air line to rear air spring	Item 3: Union nut	Tightening torque	2 Nm (1.5 ftlb.)

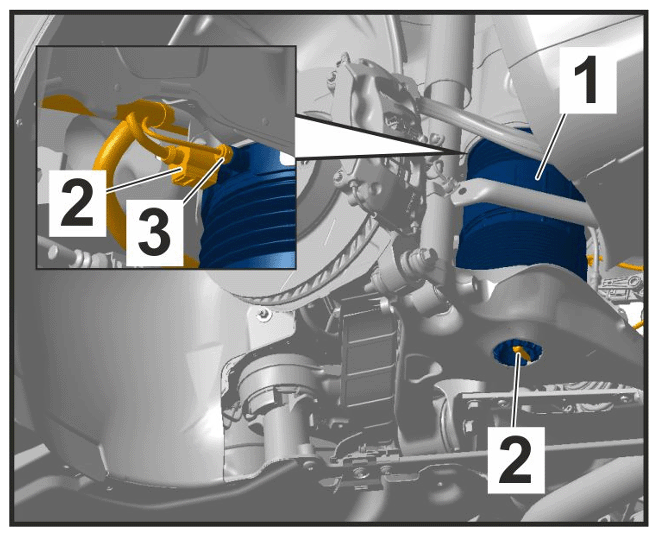

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Plug connections on air spring bellows
Drive shaft to wheel hub	Item 1: Hexagon nut, M22 x 1.5/always replace nut following removal!	Tightening torque	460 Nm (340 ftlb.)

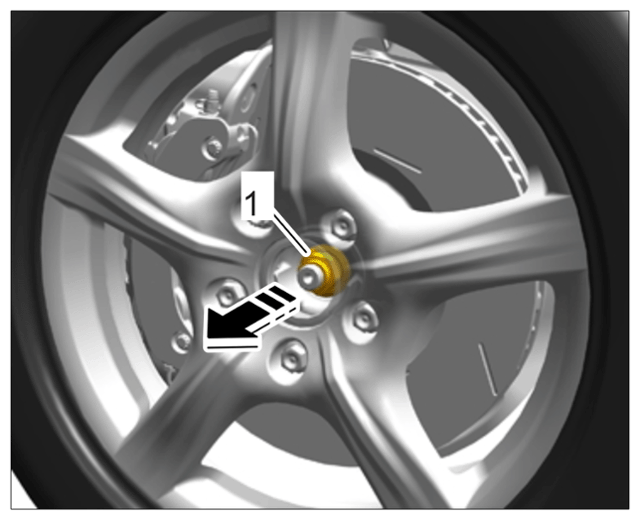

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Axle nut
