Subsequent Work

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Install rear cardan shaft.
> 393519 REMOVING AND INSTALLING REAR CARDAN SHAFT
Install exhaust system.
> WM, 260119 REMOVING AND INSTALLING EXHAUST SYSTEM

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

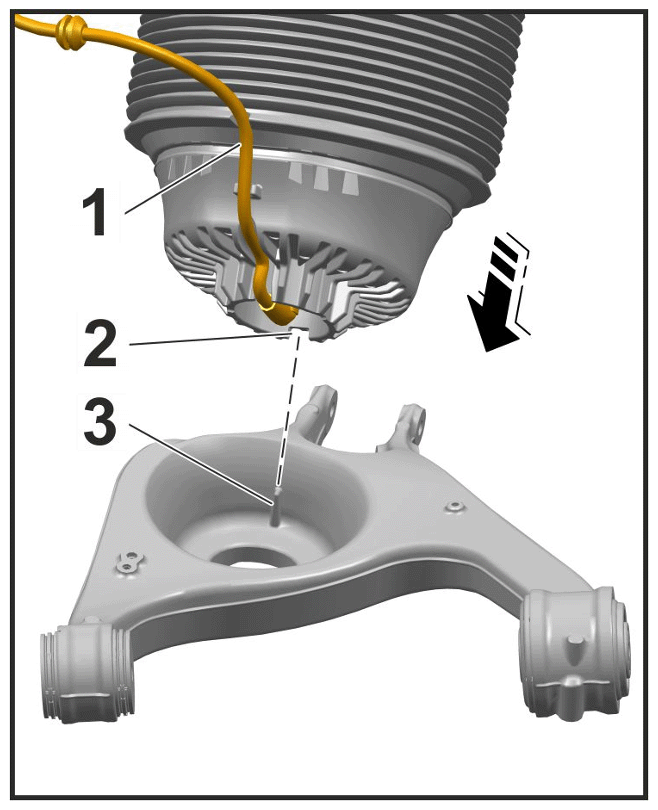

Positioning air spring bellows in trailing arm
- The air spring bellows may only be filled if it was already positioned correctly in the trailing arm (to do this, lift lower trailing arm using lifting equipment) > Positioning air spring bellows in trailing arm .
- Align air spring bellows with groove -2- at the lug -3- of the trailing arm.
Install coil spring or inflate air spring.
> 427219 REMOVING AND INSTALLING COIL SPRING

> 430117 BLEEDING AND FILLING THE LEVELLING SYSTEM
Install brake calliper on both sides of the vehicle.
> 474119 REMOVING AND INSTALLING REAR BRAKE CALLIPER

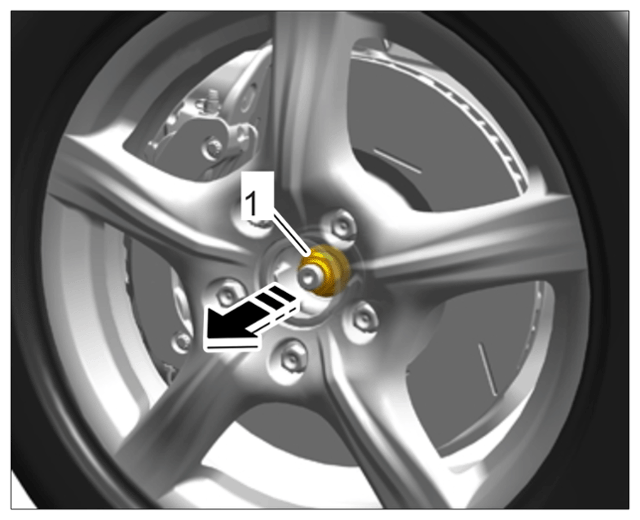

If the rear axle housing was replaced: Tighten axle nut -1- on both sides of the vehicle. Operate the brake while doing this (2nd mechanic required) > Tightening torque 460 Nm (340 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Axle nut (front axle shown)
Applies only to vehicles with PDCC: Start the 48 V vehicle electrical system.
> WM, 270703 DISCONNECTING AND STARTING 48 V SYSTEM
Only for PHEV vehicles: Fill in coolant and bleed the cooling system.
> WM, 193817 DRAINING AND FILLING COOLANT
Perform suspension alignment.
> 449503 PERFORMING FRONT AND REAR SUSPENSION ALIGNMENT
