Installing Drive Belt For Generator

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

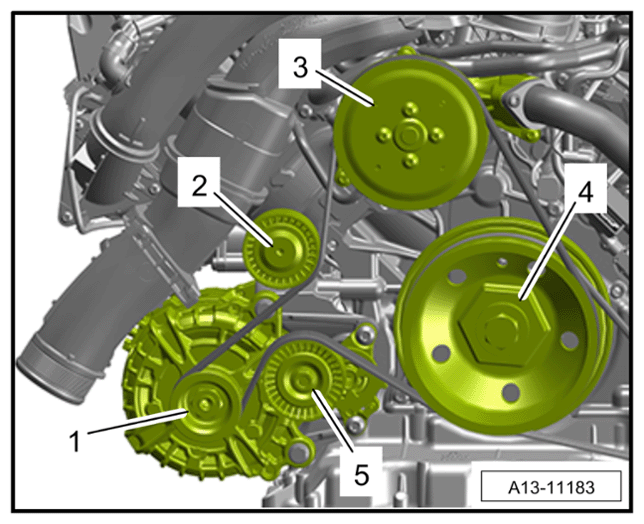

Routing of drive belt for generator

1	Generator
2	Deflection roller
3	Coolant pump
4	Vibration damper
5	Tensioning device for drive belt for generator

Fit drive belt for generator.
1. 1.1 Fit drive belt for generator on the pulleys and align it along the grooves on the pulleys.
2. 1.2 To tension the drive belt, swivel the tensioning device anti-clockwise using a ring wrench -arrow- .
3. 1.3 > T10060A - Staking mandrel must be removed from the tensioning device.
4. 1.4 Slowly swivel out the ring wrench to its original position.
5. 1.5 Check that the drive belt is seated and tensioned correctly.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

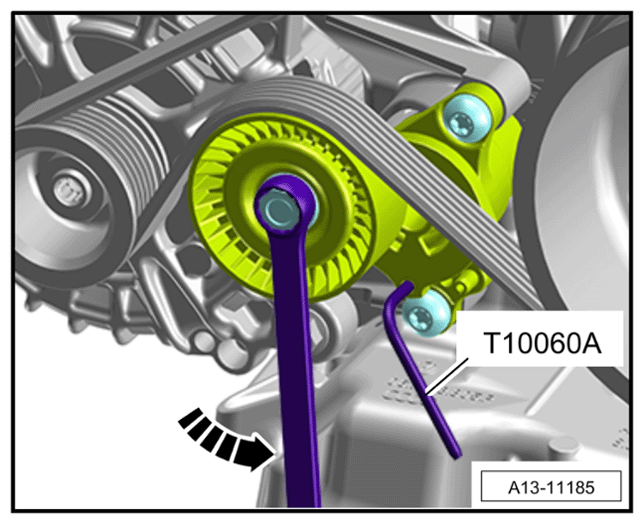

Tensioning drive belt for generator
