Installing Flywheel

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Dirt and contamination
  • Risk of damage to units or components

    → Protect components from dirt and contamination.

    → Clean or replace dirty components.

  1. Position hall-sender rotor -1-  and check position of centring pin -arrow-  .

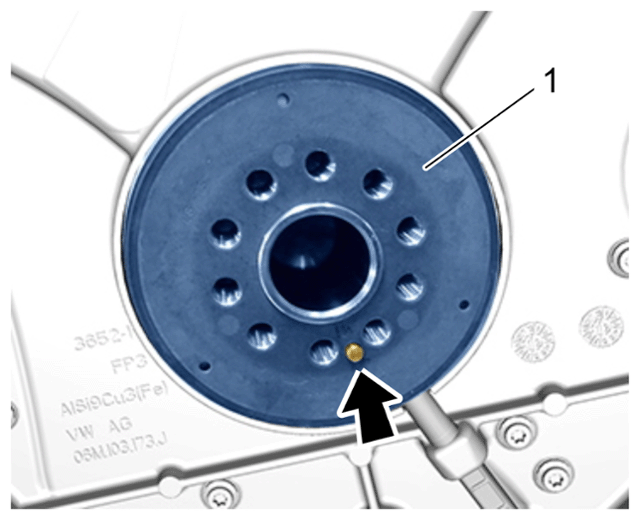

    G15821389Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Hall-sender rotor

  2. Fit the flywheel and check position of centring pin.
    1. 2.1 Secure the flywheel with a new screw.

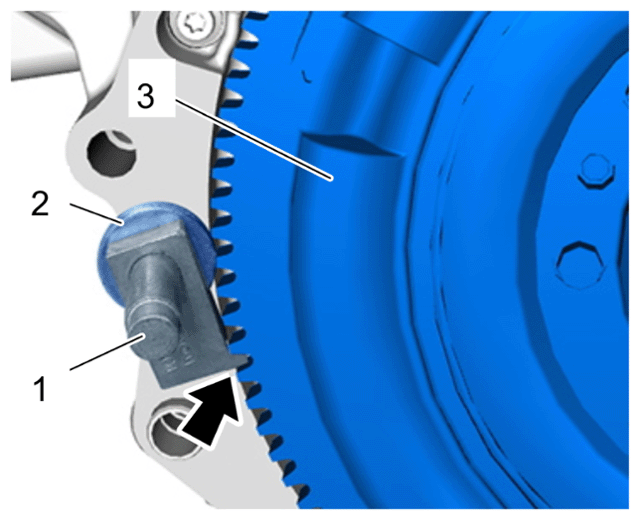

  3. Position special tool > 10-201 - holder-1-  with two washers -2-  as shown on the flywheel -3-  (-arrow-  ).
    G15821390Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Counter at the flywheel when tightening

  4. Fit new screws evenly.

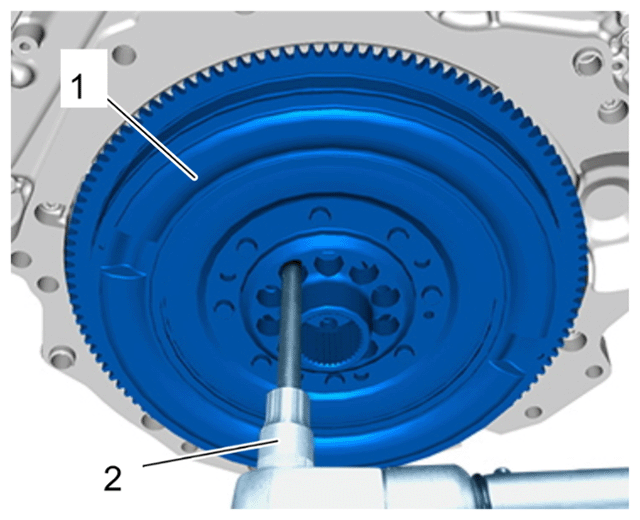

    G15821391Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Threaded joint for flywheel

  5. Tighten screws on the flywheel crosswise using tool > VAS 6942 - Torque/torque angle wrench, 20-400 Nm (15-296 ftlb.)  .

    > pre-tightening 60 Nm (44.3 ftlb.)

    > final-tightening + 90°
