Adjusting Rear-Axle Toe
WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

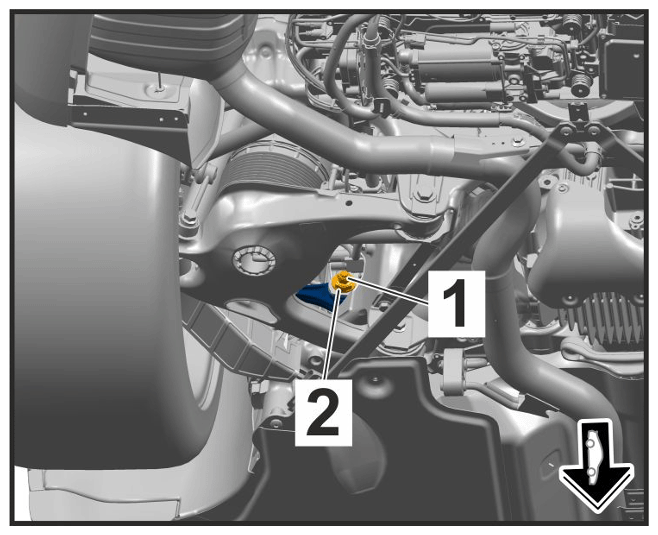

- Turn the toe eccentric adjuster -2-
as required after loosening the lock nut -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Adjusting rear-axle toe
- 1.1 Then tighten the lock nut -1-
on the toe eccentric adjuster -2-.
> Tightening torque 100 Nm (74 ftlb.)
