Preparing The Vehicle

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drive the vehicle tension-free onto the wheel-alignment stand, ensuring that axle components are not under tension by moving the vehicle forward and backward several times if necessary.
  2. Remove hub caps -1-  from all four wheels using > 9229/1 - puller hook  .

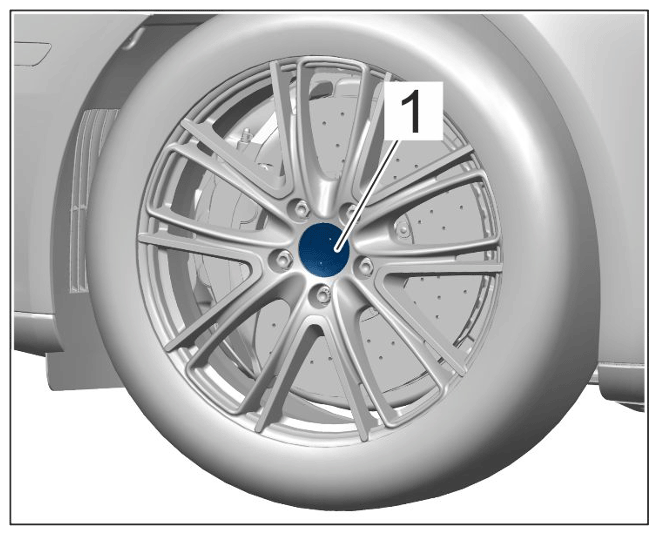

    G15891493Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Hub cap

    Information

    Contact surfaces of the wheel hub bore -1-  must be clean and smooth. Even minor debris in the wheel hub bore can result in incorrect measurements.

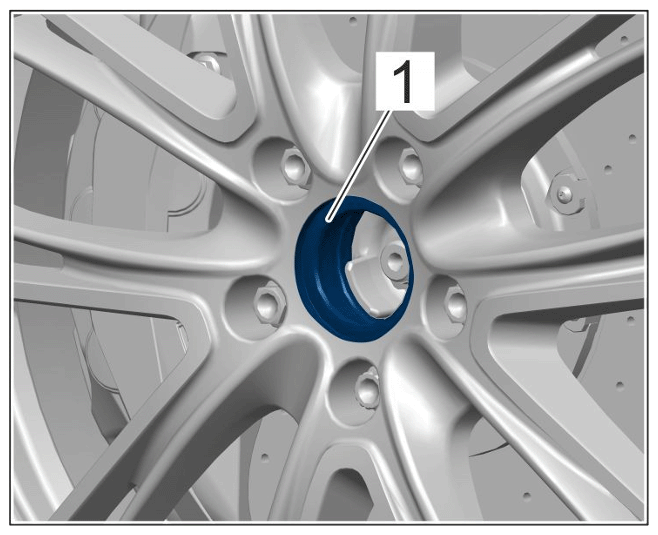

    G15891494Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wheel hub bore

  3. > VAS 6918 - Quick-Clamping Unit  in the wheel hub bores on all four wheels.
  4. Fit measured-value pickups to the > VAS 6918 - Quick-Clamping Unit  on all four wheels.
