Removing Control Unit For Tyre Pressure Monitoring (TPM)

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.

Release and disconnect electric plug connection -2- on the TPM control unit -1- .
Unscrew screws -3- and remove TPM control unit -1- with holder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

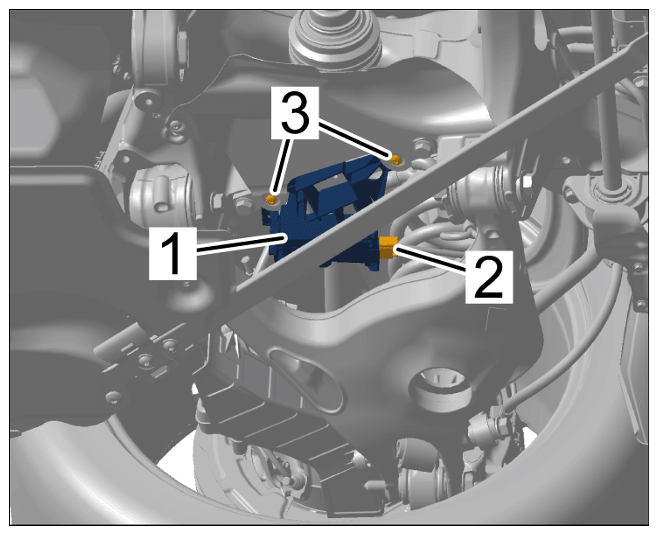

Unscrewing screws

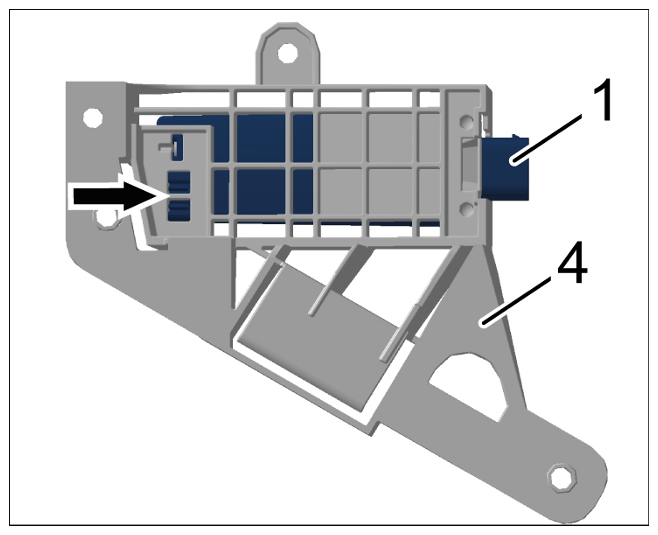

Unclip TPM control unit -1- from the holder -4- (-arrow- ) and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing control unit for Tyre Pressure Monitoring (TPM)
