Removing Cover For Side Cushion

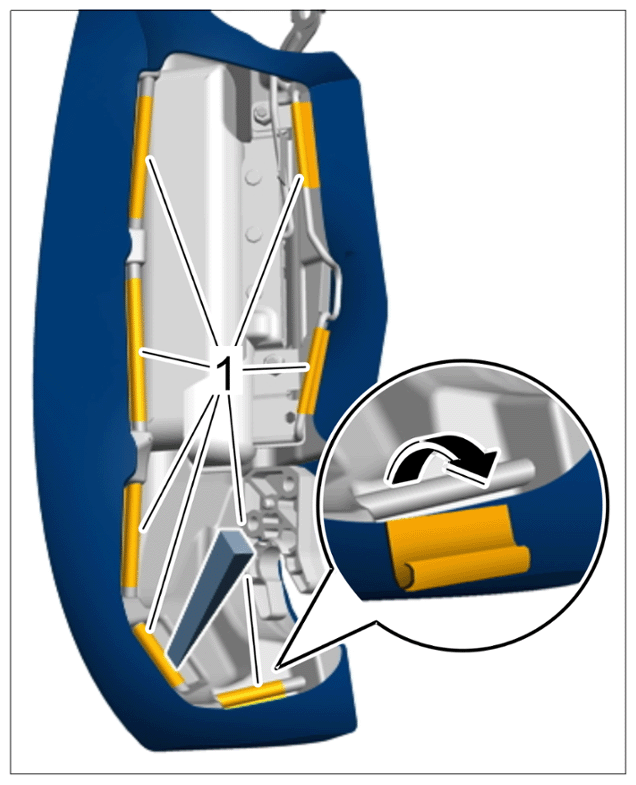

  1. Unclip cover on side cushion from clips -1-  all the way around -Arrow-  and fold it over.
    G15874043Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fixing clips

  2. Guide out airbag for seat airbag.
  3. Remove cover for side cushion.
