Removing Front Seat Surface Suction Fan

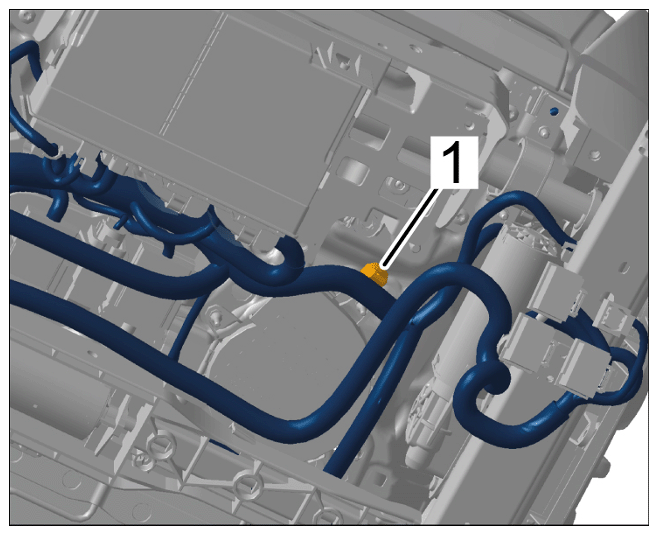

Unclip line bracket -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping line bracket

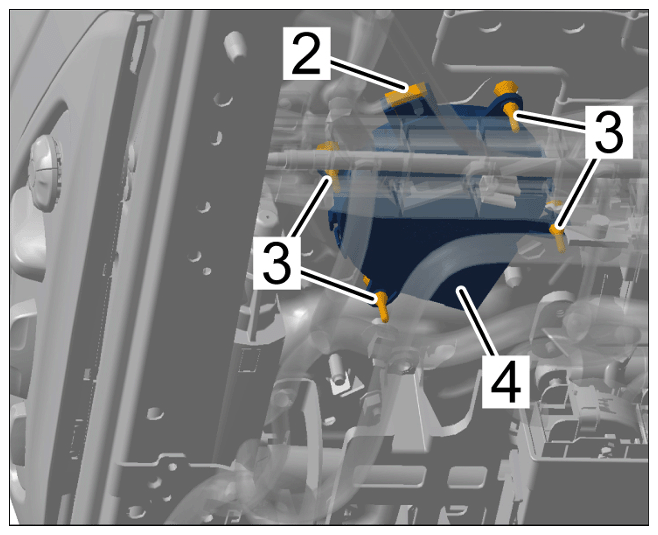

Disconnect electric plug connection -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting electric plug connection
Guide rubber pins -3- through.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guiding rubber pins through
Remove front seat surface suction fan -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing front seat surface suction fan
