Removing Rear-Backrest Lock

  1. Fold over rear-backrest.

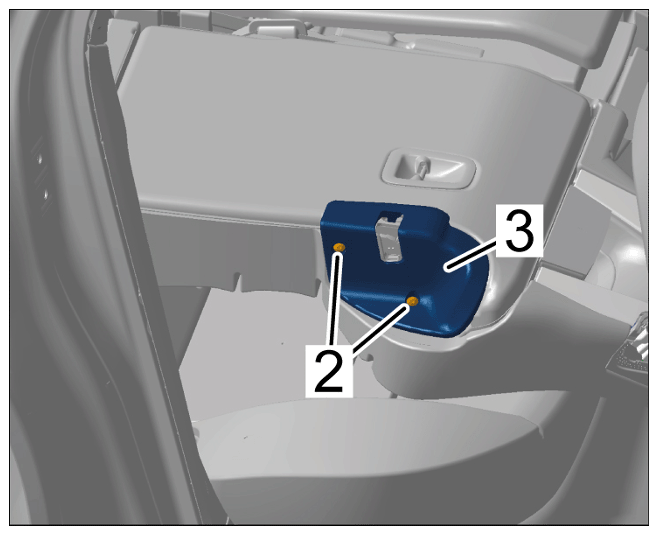

  2. Unscrew screws -2-  and remove cover -3-  .
    G15873906Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover

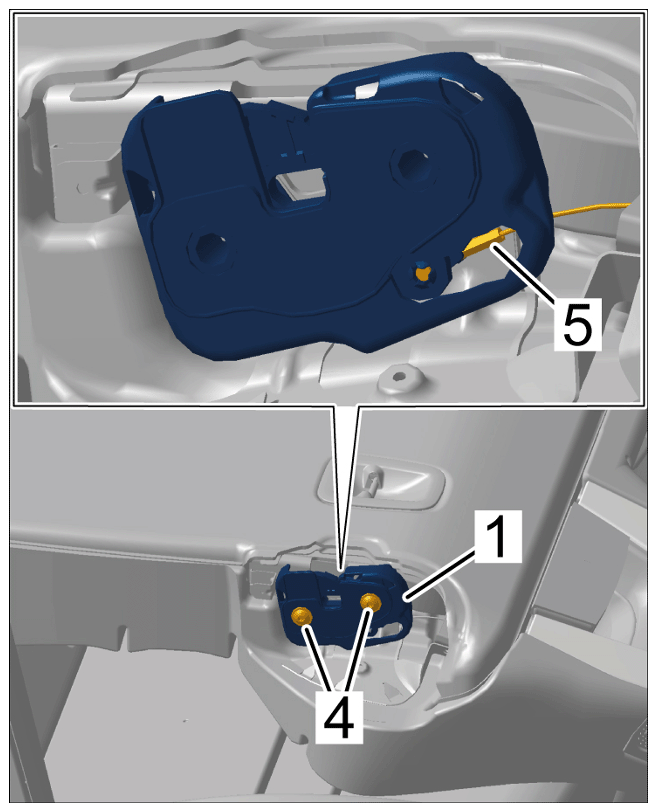

  3. Unscrew screws -4-  and loosen rear-backrest lock -1-  .
    G15873907Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

  4. Disengage cable -5-  and remove rear-backrest lock -1-  .
    G15873908Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear-backrest lock
