Technical Values

Location Descri... Type Basic value Tolerance 1 Tolerance 2
Screws on backrest locking mechanism Item 4 Tightening torque 3.2 Nm (2.2 ftlb.) +/- 0.32 Nm (0.2 ftlb.)

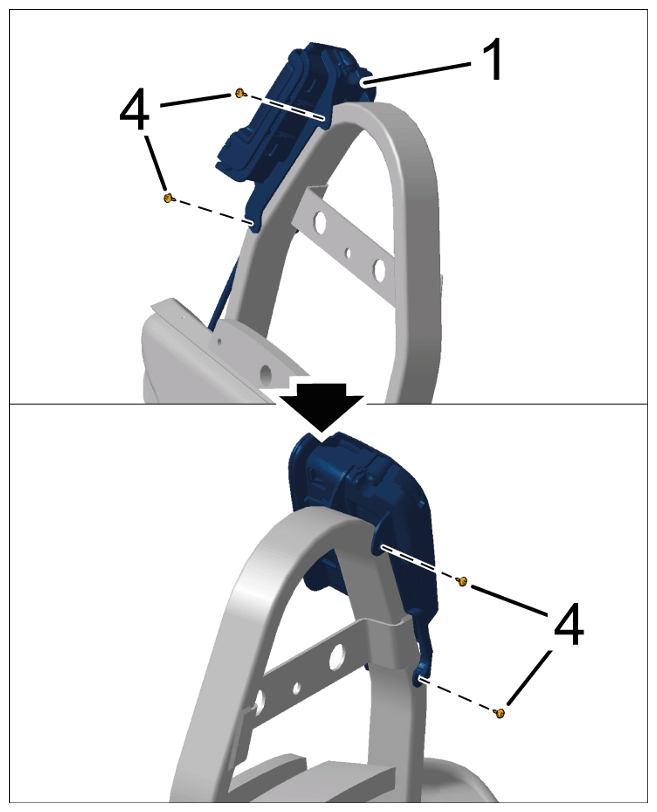

G15873888Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for backrest locking mechanism
