Removing Rear Lumbar-Support Motor

  1. Loosen rear lumbar-support motor -1-  from hard foam insert and release and disconnect electric plug connection -2-  .
    G15873886Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Releasing and pulling off electric plug connection

  2. Disconnect pneumatic line at the connection point -3-  and remove rear lumbar-support motor -1-  .

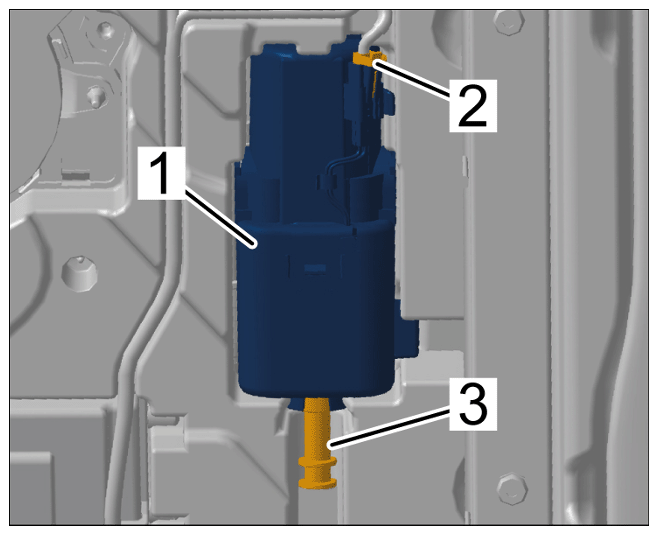

    G15873887Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing rear lumbar-support motor
