Technical Values

Location	Des...	Type	Basic val...	Toleranc...
Screw securing side holder to backrest frame	Item 1	Tightening torque	6 Nm (4 ftlb.)

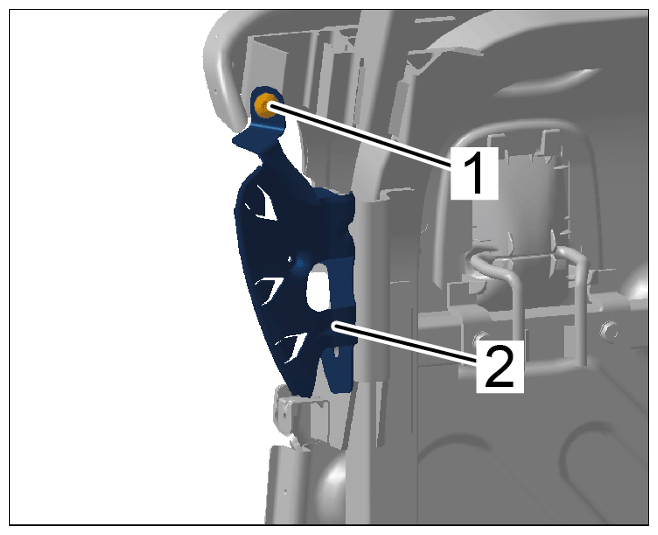

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing side holder to backrest frame
Screws securing clips to backrest frame	Item 5	Tightening torque	9 Nm (6.5 ftlb.)

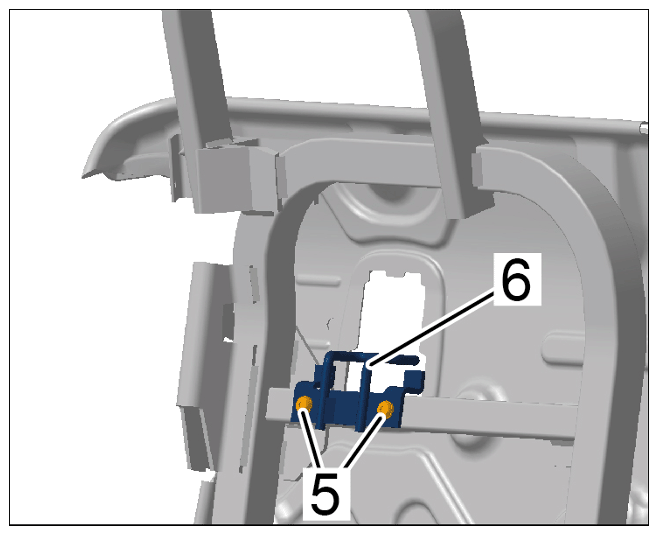

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing clips to backrest frame
Screws for armrest holder	Item 7	Tightening torque	9 Nm (6.5 ftlb.)

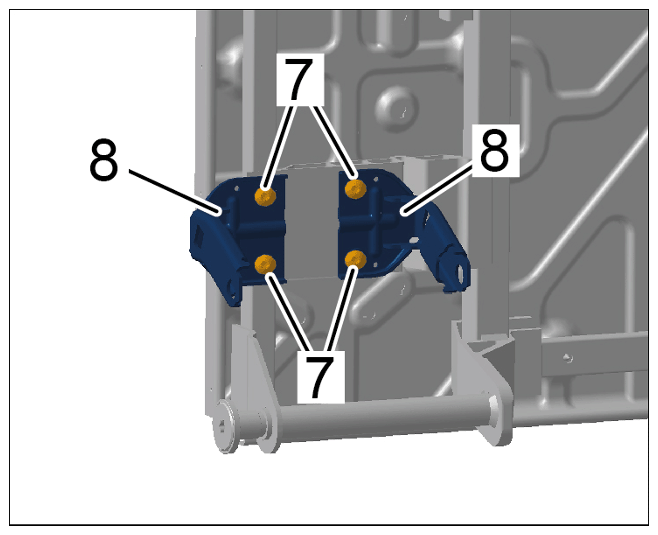

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for armrest holder
Bolt securing load-through provision lock to backrest frame		Tightening torque	50 Nm (37 ftlb.)	+/- 5 Nm (3.5 ftlb.)
