Technical Values

Location Descri... Type Basic value Tolerance 1 Tolerance 2
Screw securing folding table to floor Item 1 Tightening torque 8 Nm (6 ftlb.)

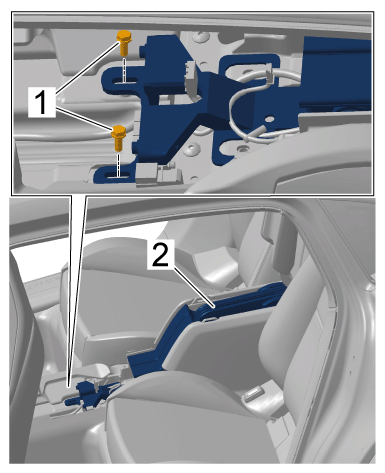

G15873835Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw securing folding table to floor
