Removing Backrest Cover

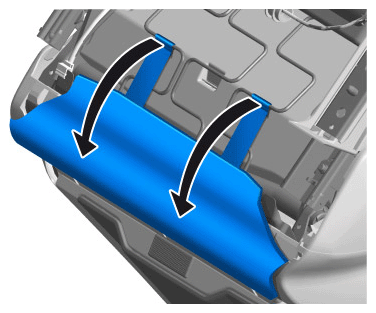

  1. Detach covering on backrest cover at the underside of the front seat -arrows-  .
    G15873807Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Loosening restraining straps

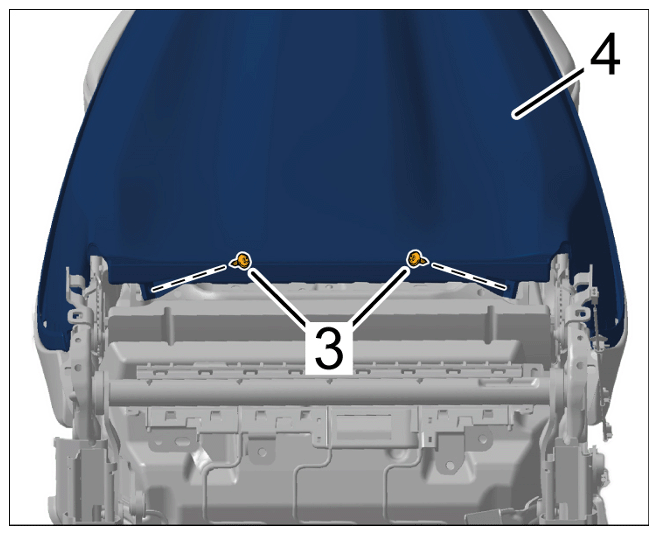

  2. Unscrew screws -3-  at the bottom of the backrest cover -4-  .
    G15873808Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unscrewing screws

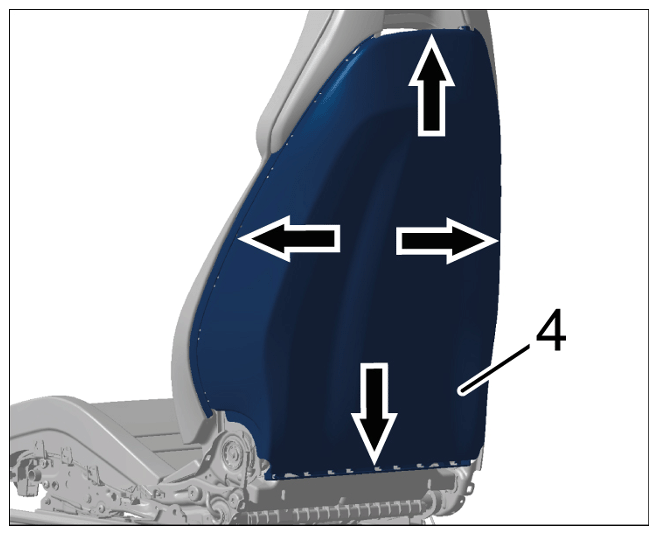

  3. Detach seat backrest cover all the way around using a suitable tool -arrows-  and remove backrest cover -4-  .
    G15873809Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing backrest cover
