Removing Front Seat Trim Panel (Outer)

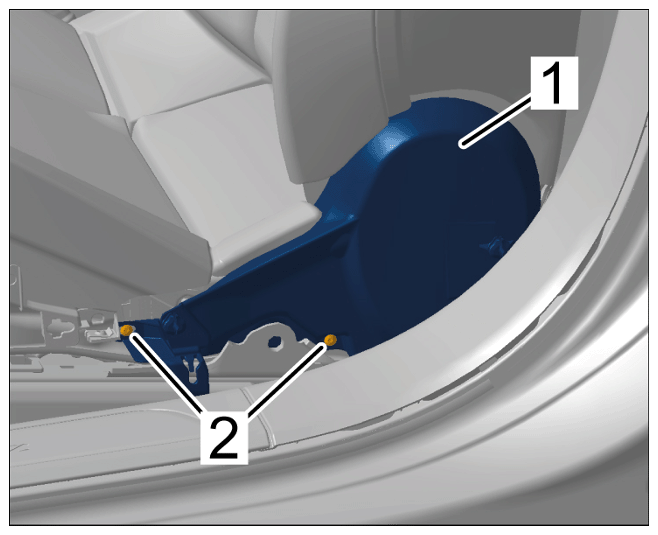

  1. Unscrew screws -2-  from front seat trim panel (outer) -1-  .
    G15873778Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unscrewing screws

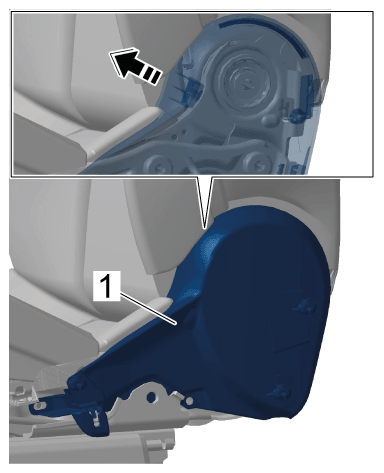

  2. Unclip front seat trim panel (outer) -1-  (-arrow-  ) and remove it by pulling it to the rear.
    G15873779Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing front seat trim panel (outer)
