Removing Front Seat Trim Panel (Inner)

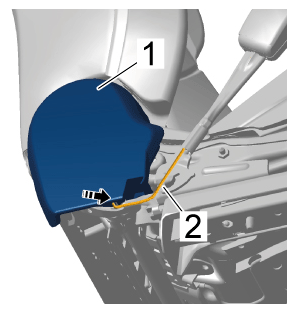

  1. Disengage electric line for seat-belt buckle -2-  from the front seat trim panel (inner) -1-  (-arrow-  ).
    G15873775Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Disengaging electric line

  2. Unscrew and remove screw -3-  .
    G15873776Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unscrewing screw

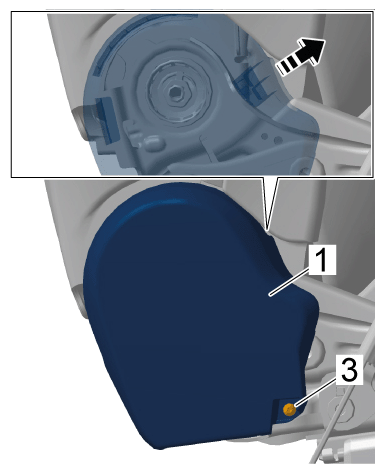

  3. Disengage front seat trim panel (inner) -1-  (-arrow-  ), remove it to the rear and unclip line bracket.
    G15873777Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing front seat trim panel (inner)
