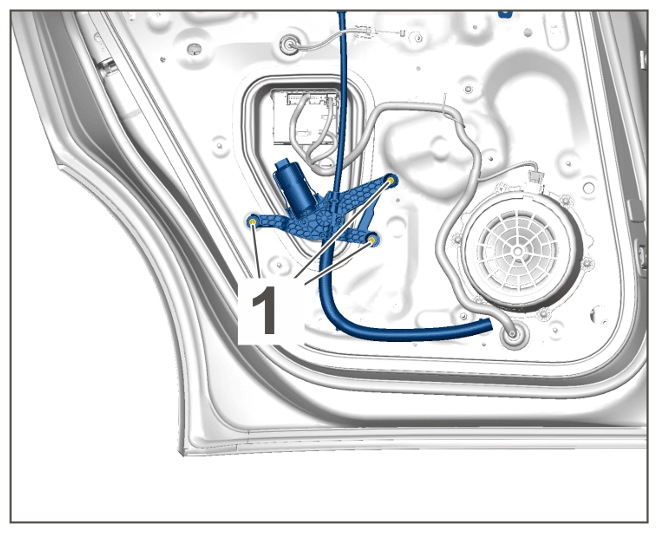

| Sun blind motor bracket to door bodyshell |
Item 1 |
Tightening torque |
3.5 Nm (2.5 ftlb.) |
+/- 0.5 Nm (0.3 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fastening screws |

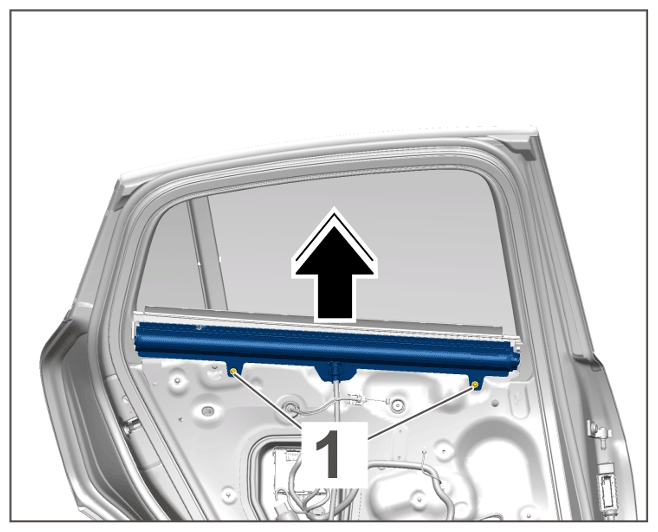

| Sun blind to door bodyshell |
Item 1 |
Tightening torque |
3.5 Nm (2.5 ftlb.) |
+/- 0.5 Nm (0.3 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Removing sun blind |
