Technical Values

Location Descri... Type Basic value Tolerance 1 Tolerance 2
Screw securing cupholder to rear centre console Item 1 Tightening torque 1.2 Nm (0.8 ftlb.) +/- 0.2 Nm (0.1 ftlb.)

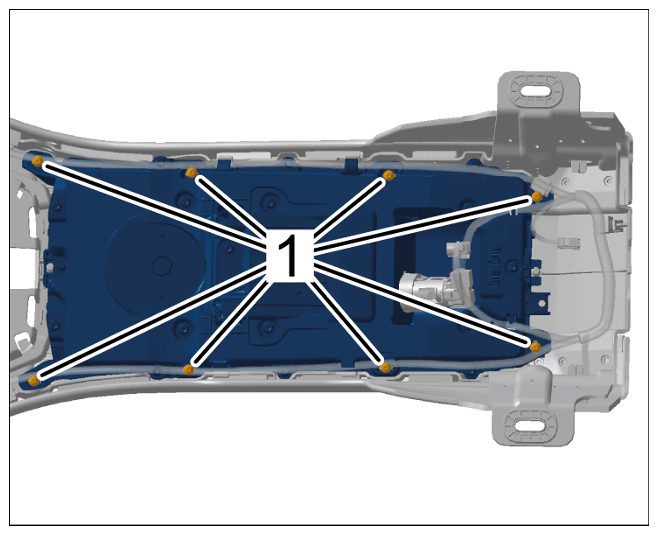

G15865206Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing cupholder to rear centre console
