Removing Rear CUPHOLDER

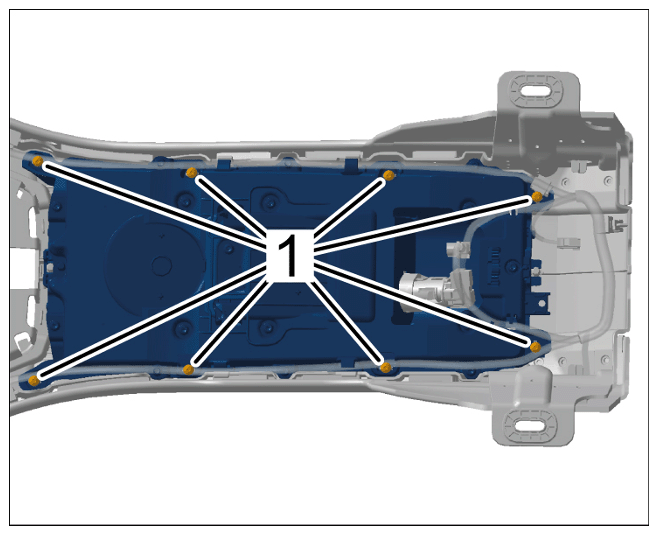

1. Unscrew screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screws for rear cupholder

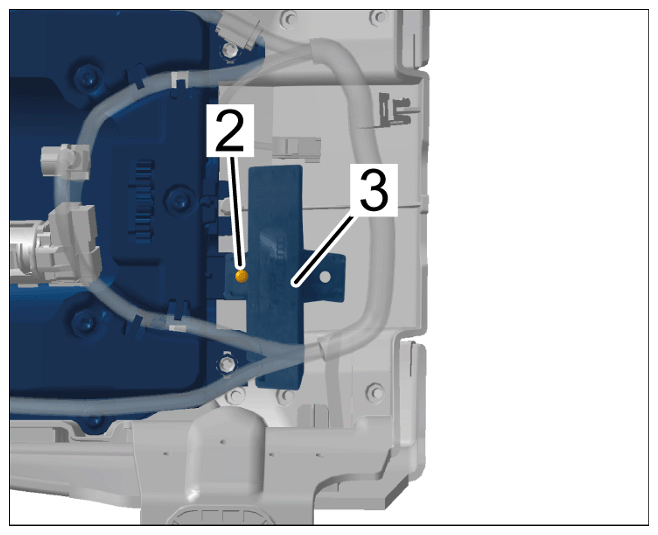

2. Loosen Kessy antenna -3-  from clip -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   KESSY antenna

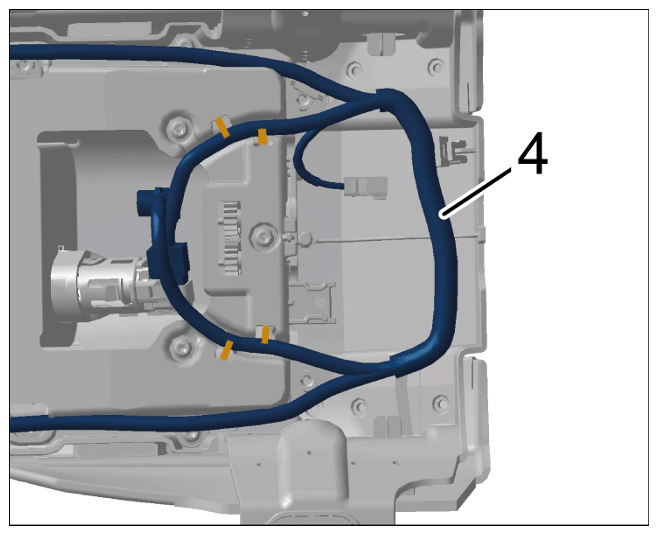

3. Unclip electric line -4-  from retaining lugs.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Line bracket

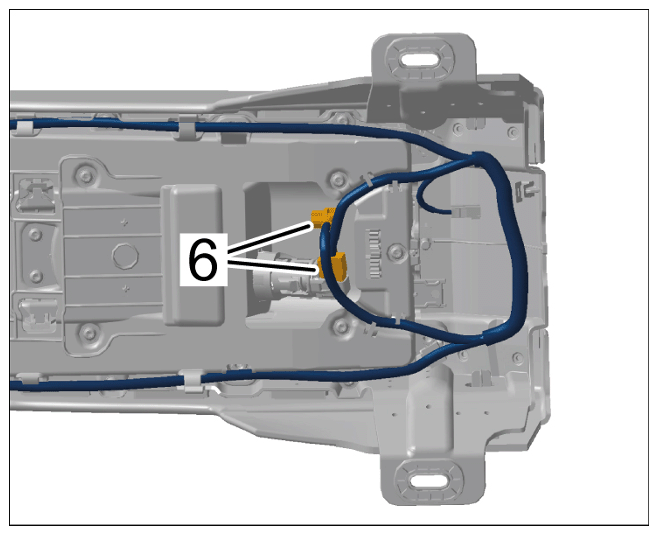

4. Release and unplug electric plug connections -6-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections

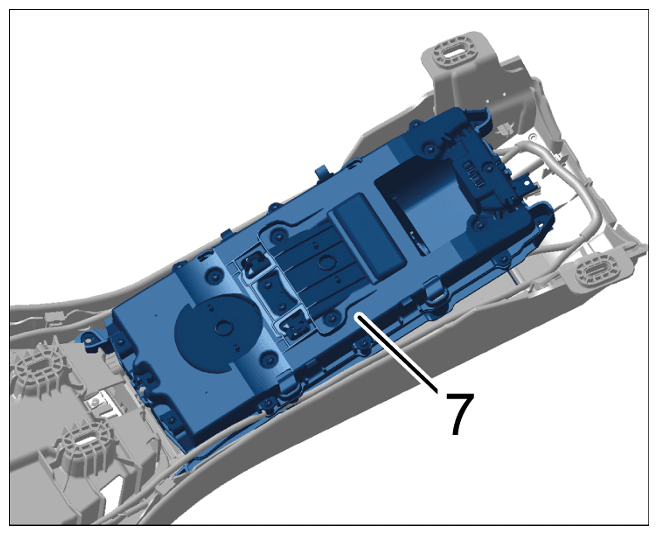

5. Remove rear cupholder -7-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear cupholder
