Home >> Porsche >> 2021 >> Panamera Base >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> 68 Interior Equipment - Coupe -- 971 - PANAMERA (971) >> WM, 682519 Removing And Installing Rear Centre Console >> Technical Values

Technical Values

Location Descri... Type Basic value Tolerance 1 Tolerance 2
Screws securing rear centre console to floor Item 2 Tightening torque 8 Nm (6 ftlb.) +/- 0.5 Nm (0.4 ftlb.)

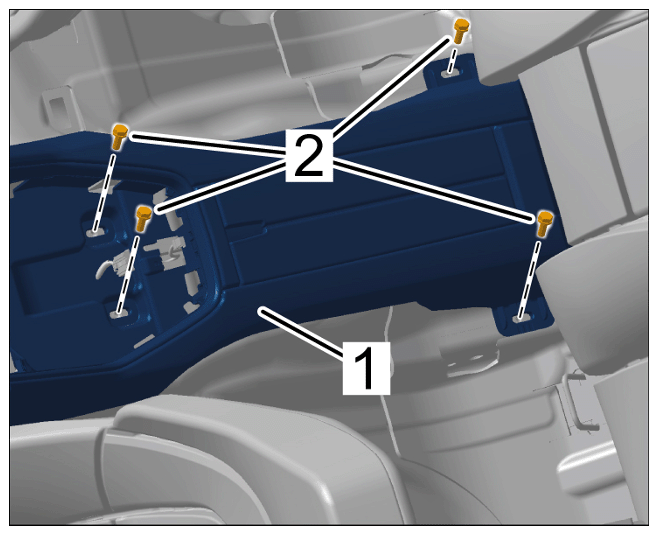

G15865191Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing rear centre console to floor
