Removing Front Ashtray/Oddments Tray

  1. Unscrew screws -2-  and remove front ashtray/oddments tray -1-  from upper part of front centre console.

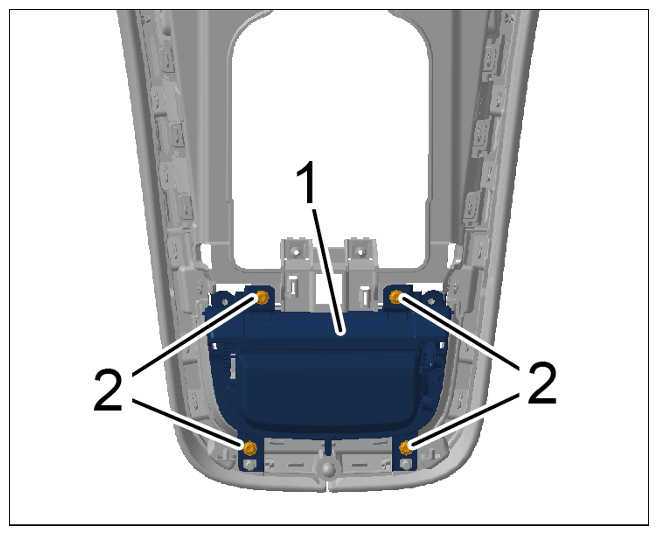

G15865183Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front ashtray/oddments tray
