68 Interior Equipment - Coupe -- 971 - PANAMERA (971)
>>
WM, 681619 Removing And Installing Rear Centre Console Storage Bin
>>
Technical Values
Technical Values
Location
Descri...
Type
Basic value
Tolerance 1
Tolerance 2
Screws for rear centre console (Business)
Item 1
Tightening torque
12 Nm (9 ftlb.)
+/- 0.5 Nm (0.35 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

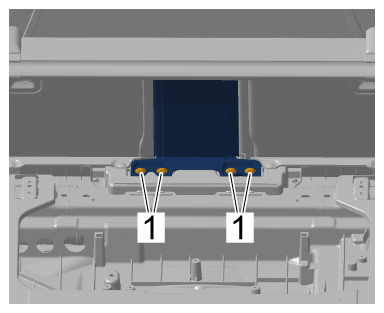

Screws for rear centre console (Business)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
