3X Power Transmission - General 3.0L Turbo - PANAMERA (971)
>>
WM, 3X00IN Technical Values Transmission
>>
Technical Values - Group 39
>>
Technical Values For Rear Cardan Shaft
Technical Values For Rear Cardan Shaft

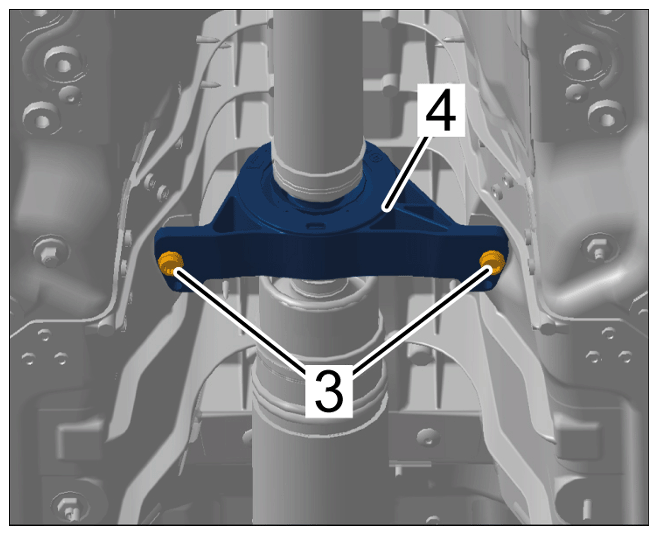

Fig 1: Centre Bearing Holder Component Location With Torque Specification
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrewing screws on centre bearing holder
3
Screws on centre bearing for rear cardan shaft >
Tightening torque 20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
