Rear Drive Shaft

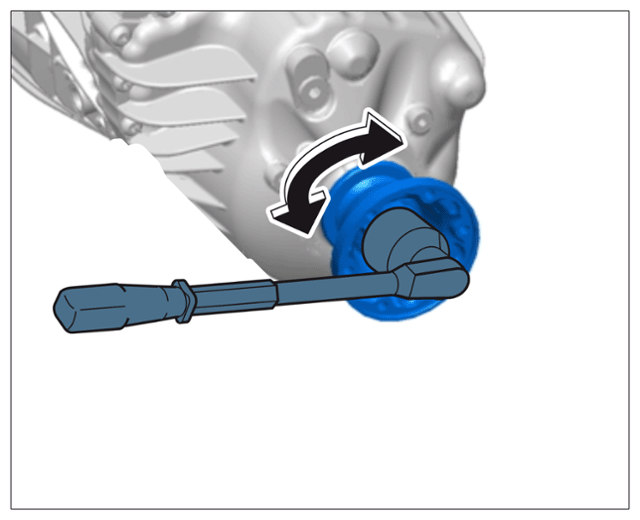

G15888286Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nut on output flange (similar illustration)

Location Description Type Basic value Tolerance
Nut on flange   Tightening torque 218 Nm (161 ftlb.) +/- 5 Nm (3.5 ftlb.)
