Double Clutch Transmission On Engine

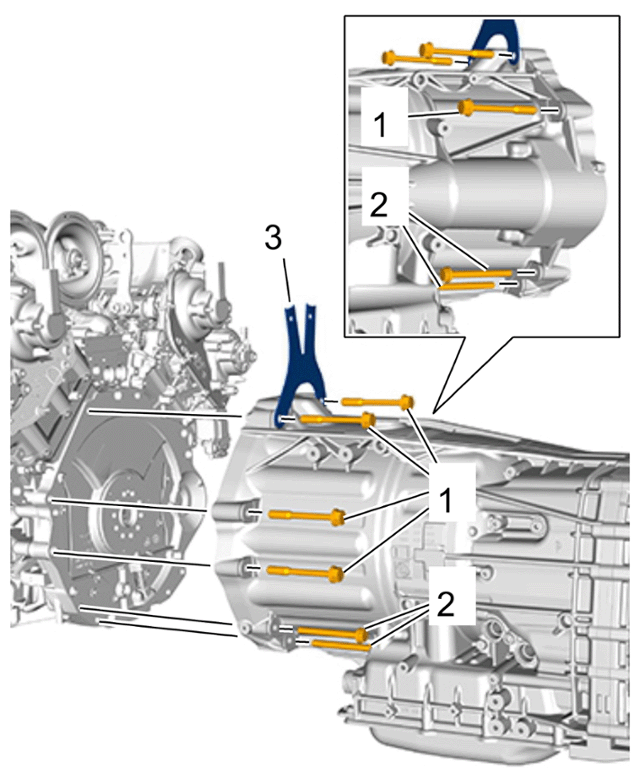

Fig 1: Double Clutch Transmission On Engine Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Double clutch transmission on engine

1	Screw securing double clutch transmission to engine > Initial tightening 20 Nm (15 ftlb.) > Torque angle 60°
2	Screw securing double clutch transmission to engine > Initial tightening 15 Nm (11 ftlb.) > Torque angle 105°
3	Exhaust system holder

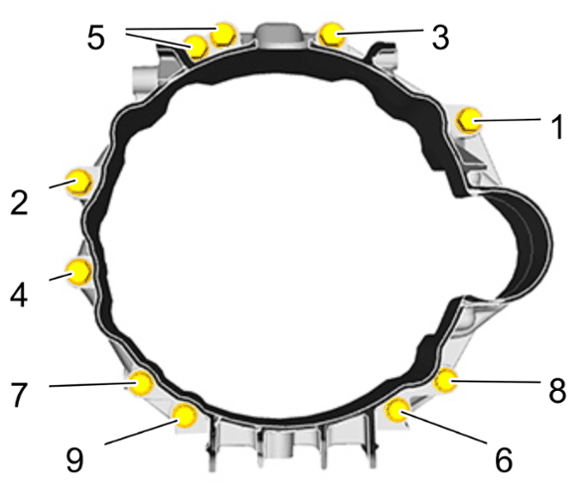

Fig 2: Transmission Flange Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for transmission flange
