Loosening Power Distributor (HSB)

  1. Unscrew and remove screws -2-  .
  2. Unclip line bracket -3-  .
  3. Swivel out power distributor (HSB) -1-  with lines connected.

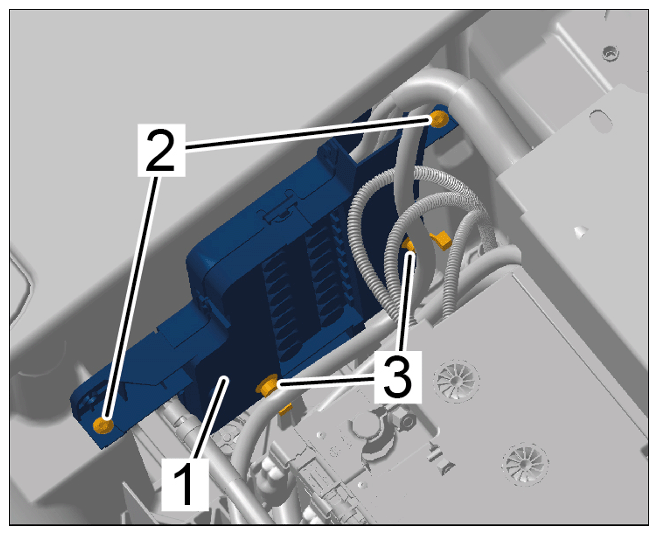

    G15876627Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Loosening power distributor (HSB)
