Removing Wiring For Front Backrest

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
• Do not touch electric pins and plug contacts.

  Information

  The number of electric plug connections will vary depending on equipment.

1. Release and disconnect electric plug connection -2-  on backrest adjustment motor.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Releasing and pulling off electric plug connection

2. Open the left line bracket -3-  and disengage it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Opening and disengaging left line bracket

3. Only for vehicles with seat ventilation, air cushion or backrest support (I-no. 4D1, 4D2, 4D3, 4D5, 4D6, 4D7, 4D9):  Cut tie-wraps.
4. Only for vehicles with seat ventilation (I-no. 4D1, 4D2, 4D3, 4D5, 4D6, 4D9):

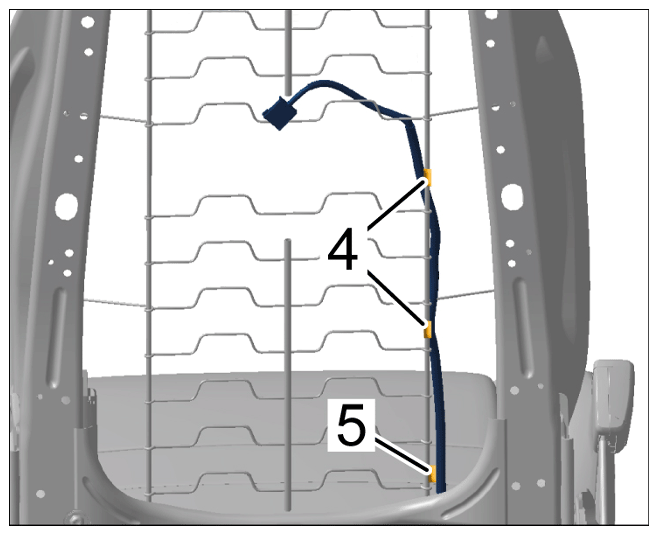

   Open the right line bracket -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Opening right line bracket

5. Only for vehicles with seat ventilation, air cushion or lumbar support (I-no. 4D1, 4D2, 4D3, 4D5, 4D6, 4D7, 4D9):  Open and disengage the right line bracket -5-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Opening and disengaging right line bracket

6. Release and disconnect electric plug connection -6-  for lumbar support motor.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Releasing and disconnecting electric plug connection for lumbar support motor

7. Release and disconnect electric plug connection -7-  for air cushion valve.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Releasing and disconnecting electric plug connection for air cushion valve

8. Only for vehicles with massage seats (I-no. 4D2, 4D4, 4D5, 4D6, 4D7, 4D9):

   Release and disconnect electric plug connection for lumbar support valve -7-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Releasing and disconnecting electric plug connection for lumbar support valve

9. Only for vehicles with massage seats (I-no. 4D2, 4D4, 4D5, 4D6, 4D7, 4D9):

   Disengage lines at the holder.

10. Disconnect electric plug connection for seat heating for backrest -8-  and loosen it from the holder.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Releasing and disconnecting electric plug connection for lumbar support valve

11. Press line bracket -9-  forward.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Guiding electric wire harness out of front backrest

12. Guide electric plug connections inwards.
13. Disconnect electric line for front backrest.
    1. 13.1 Unclip line bracket -10-  .
    2. 13.2 Open the wiring duct -11-  .
    3. 13.3 Release and unplug electric plug connections -12-  .

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

       Disconnecting electric line for front backrest

14. Guide out electric wire harness for front backrest.
