Removing Wire Harness For Engine

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Section of line

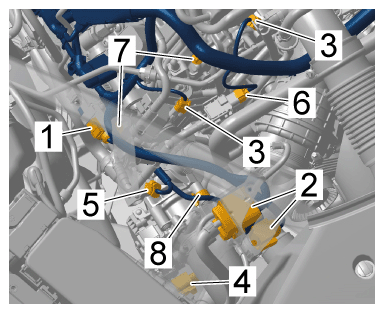

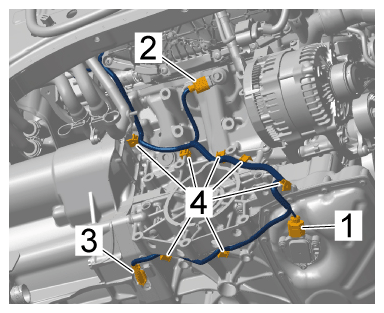

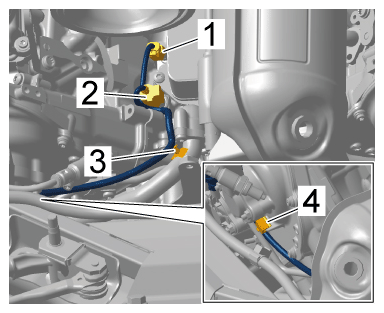

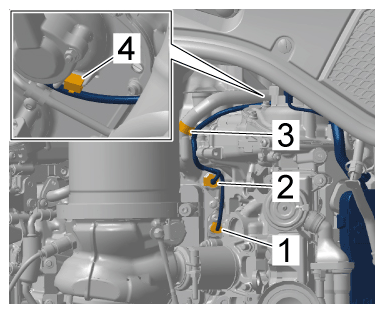

1. 1.1 Release and disconnect electric plug connection on oil level sensor -1-  .
2. 1.2 Release and disconnect electric plug connection on right knock sensor -2-  .
3. 1.3 Release and disconnect electric plug connection on engine speed sender -3-  .

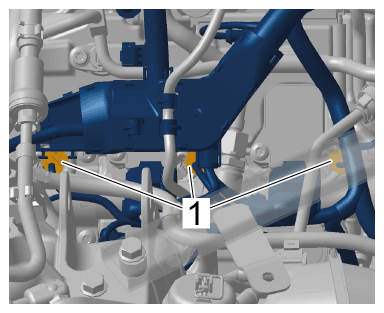

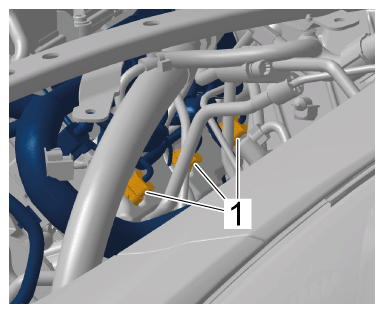

4. 1.4 Loosen clips -4-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for rear water pump

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

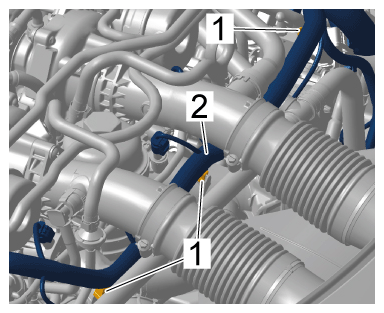

Omega clip

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

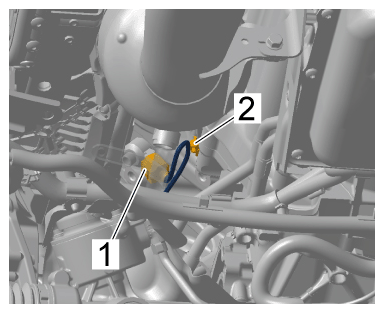

Electric plug connection for left knock sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clip

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

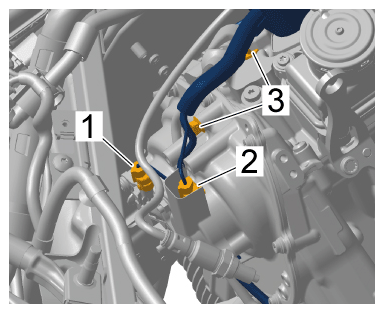

Electric plug connection for oil pressure control valve

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Omega clip

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

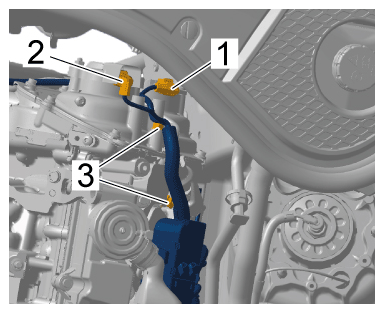

Electric plug connection for oil-pressure sender

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection on thermostat

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for change-over valve

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clips

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Omega clip

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

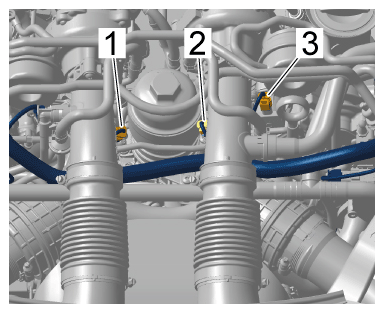

Electric plug connection for exhaust camshaft controller

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for intake camshaft controller

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

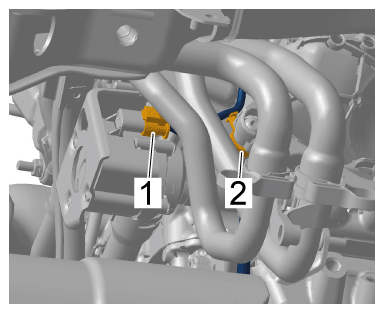

Electric plug connection for high-pressure pump

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for fuel sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

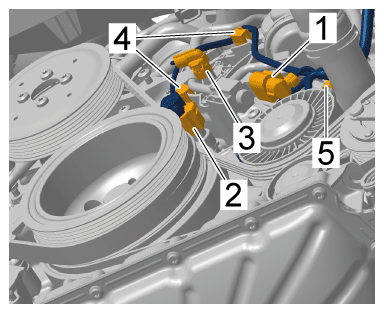

Electric plug connection for fuel pressure sensor (high-pressure sensor)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

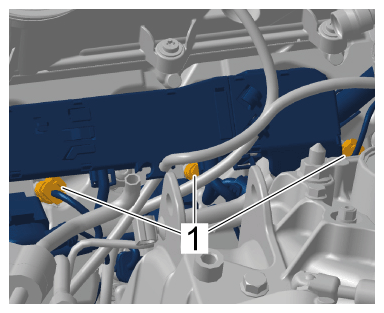

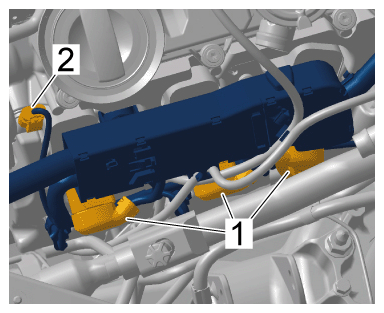

Cable duct

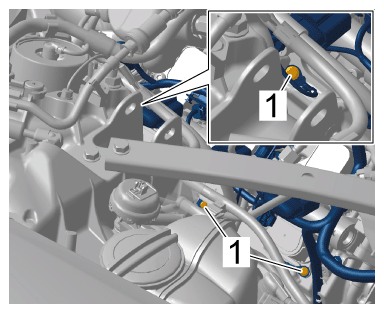

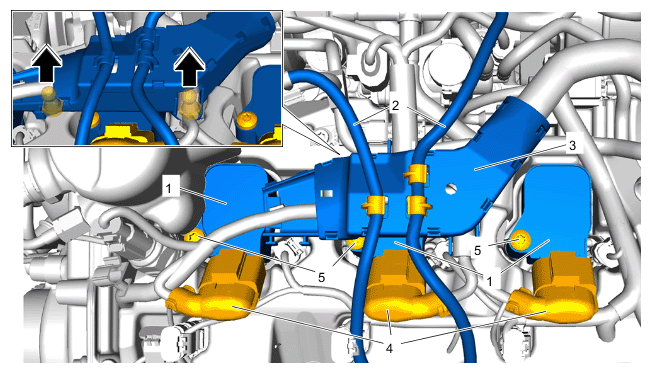

1. 20.1 Release and disconnect electric plug connection -4-  for ignition coils -1-  .
2. 20.2 Loosen oxygen sensor lines -2-  from cable duct -3-  .
3. 20.3 Pull cable duct -3-  off ball studs -arrows-  and set it aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for cam adjuster

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections for injector

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ground straps

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for camshaft pulse sender

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for pressure converter

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for temperature sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for oxygen sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections for right camshaft control valve

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for right throttle valve

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for intake air sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clips

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Omega clip

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for air temperature sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for throttle valve

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

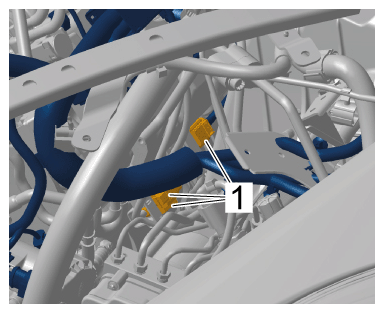

Section of line

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for oil temperature sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for oil pressure switch

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Omega clip

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clip

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for exhaust camshaft controller

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for intake camshaft controller

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clips

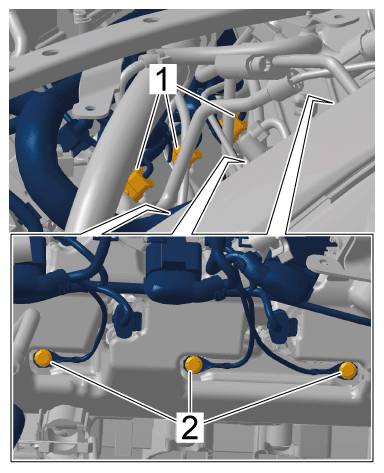

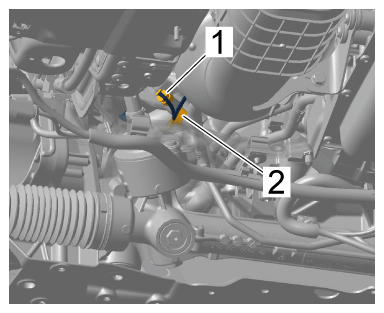

1. 45.1 Release and disconnect vent line -2-  at the connection and move it forward.
2. 45.2 Release and disconnect vacuum line -1-  at the connection point and move it forward.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

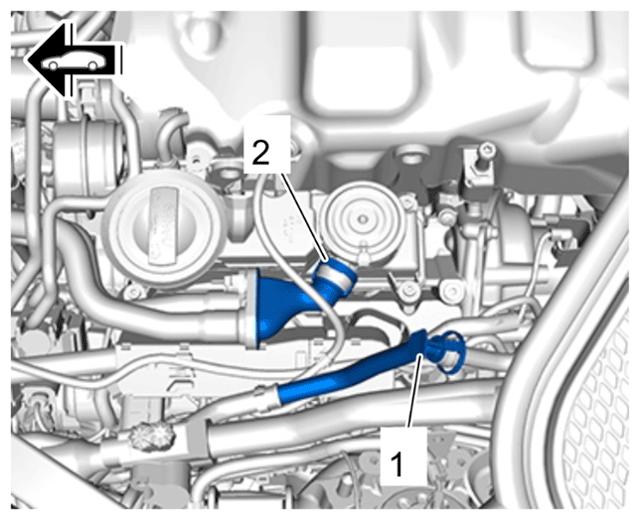

   Vent line and vacuum line

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

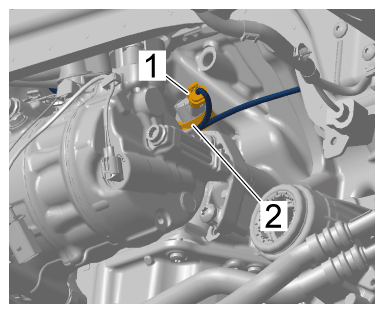

Electric plug connection for left cam adjuster

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ground lines on valve cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

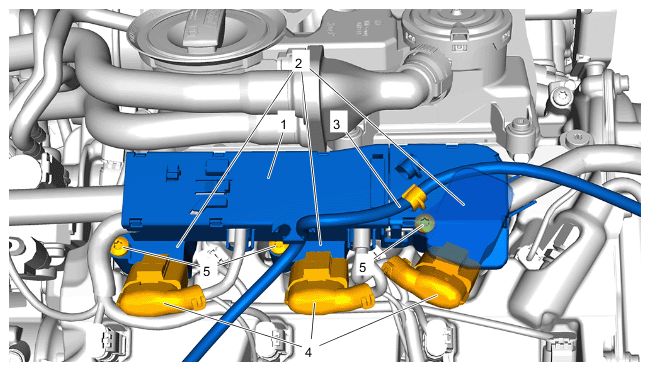

Electric plug connections for left ignition coils

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections for camshaft pulse sender

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections for injectors

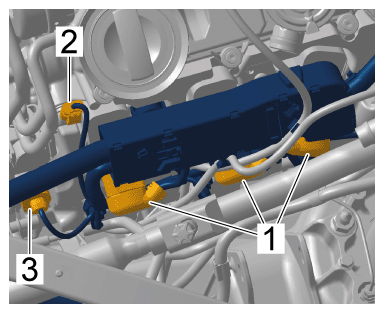

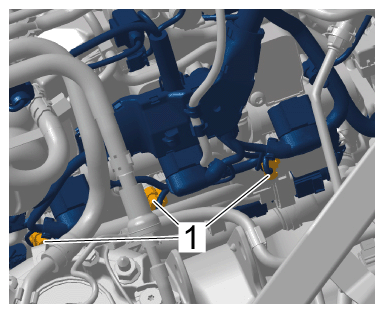

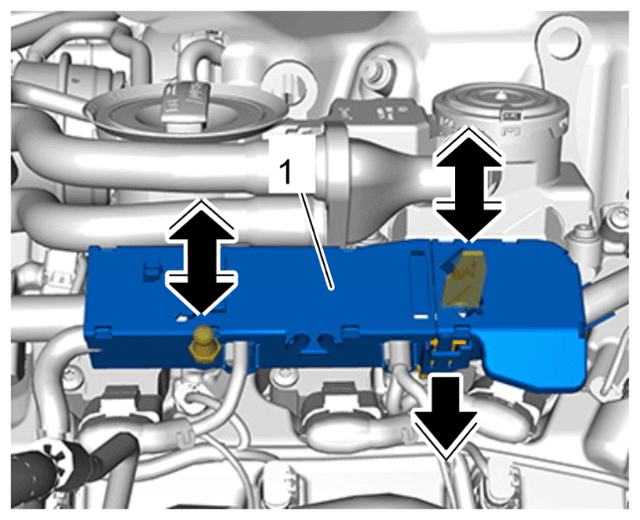

1. 51.1 Actuate retaining clip -bottom right arrow-  and pull cable duct out of the guide -top right arrow-  .
2. 51.2 Pull cable duct -1-  off ball pins -left arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cable duct

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

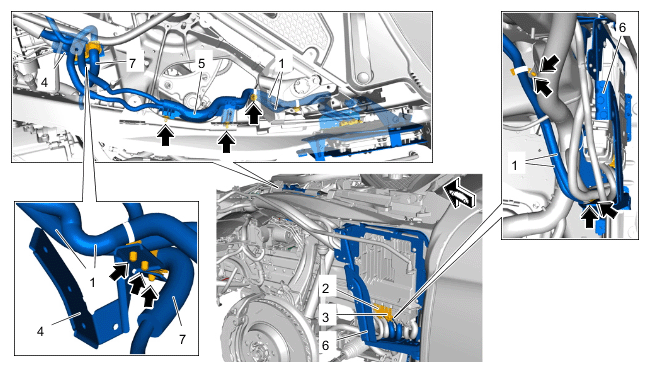

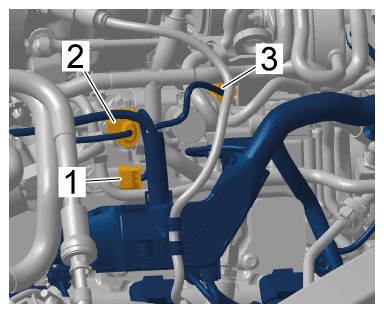

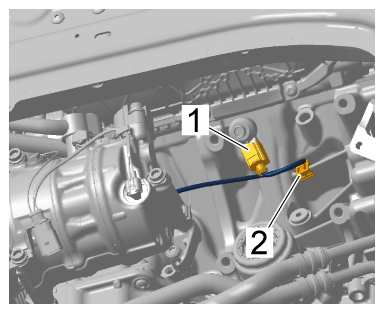

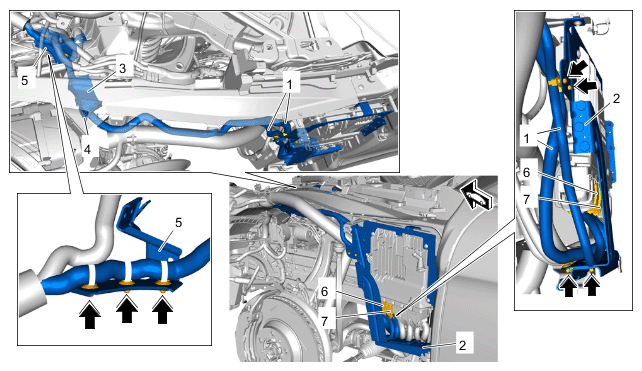

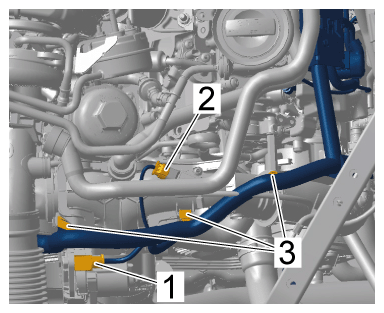

Engine wire harness in front left wheel housing

1. 52.1 Loosen tie-wraps -arrows-  .
2. 52.2 Loosen clips -arrows-  on control unit holder -2-  .
3. 52.3 Remove wiring harness holder -3-  from wiring harness holder.
4. 52.4 Loosen clips -arrows-  from the air-conditioning line holder -5-  .
5. 52.5 Release and disconnect electric plug connections -6 and 7-  on engine control unit.
6. 52.6 Disconnect wire harness -1-  and set it down on the engine.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine wire harness in front left wheel housing

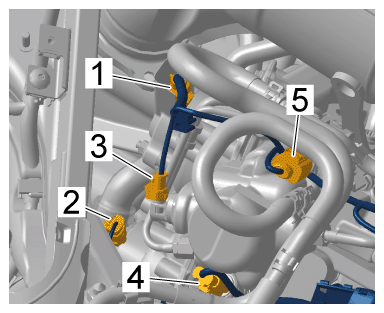

1. 53.1 Release and disconnect electric plug connections -2 and 3-  on engine control unit.
2. 53.2 Loosen holder -arrows-  on the air-conditioning line holder -4-  .
3. 53.3 Loosen holder -arrows-  and loosen wire harness holder -5-  at the top of the wing.
4. 53.4 Loosen holder -arrows-  for wire harness -1-  on the control unit holder -6-  .
5. 53.5 Open the clip and disconnect vacuum line -7-  from the wire harness -1-  .

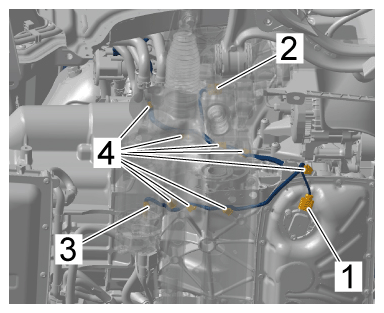

1. 1.1 Release and disconnect electric plug connection on oil level sensor -1-  .
2. 1.2 Release and disconnect electric plug connection on right knock sensor -2-  .
3. 1.3 Release and disconnect electric plug connection on engine speed sender -3-  .
4. 1.4 Unclip clips -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Loosening section of line

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection on rear water pump

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping omega clip

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection on left knock sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping clip

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection on oil pressure control valve

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping omega clip

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection on oil-pressure sender

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection on thermostat

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection on change-over valve

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping clips

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping omega clip

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection on exhaust camshaft controller

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection on intake camshaft controller

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection on high-pressure pump

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection on fuel sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection on fuel pressure sensor (high-pressure sensor)

1. 20.1 Release and disconnect electric plug connection -4-  for ignition coils -1-  .
2. 20.2 Loosen oxygen sensor lines -2-  from cable duct -3-  .
3. 20.3 Pull cable duct -3-  off ball studs -arrows-  and set it aside.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Exposing cable duct

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection on cam adjuster

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connections on injector

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing screws

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection on camshaft pulse sender

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection on pressure converter

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection on temperature sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection for oxygen sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and pulling off electric plug connections

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connections on right camshaft control valve

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection on right throttle valve

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection on intake air sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and pulling off electric plug connection

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping clips

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping omega clip

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connector on right air temperature sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connector on left air temperature sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection on left camshaft control valve

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping section of line

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection on oil temperature sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection on oil pressure switch

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping omega clip

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping clip

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection on exhaust camshaft controller

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection on intake camshaft controller

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping clips

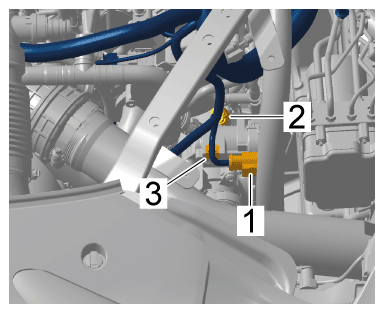

1. 46.1 Release and disconnect vent line -2-  at the connection and move it forward.
2. 46.2 Release and disconnect vacuum line -1-  at the connection point and move it forward.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Disconnecting vent line and vacuum line and moving them forward

3. 46.3 Loosen oxygen sensor line -3-  from cable duct -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Disconnecting oxygen sensor line

1. 47.1 Actuate retaining clip -bottom right arrow-  and pull cable duct out of the guide -top right arrow-  .
2. 47.2 Pull cable duct -1-  off ball pins -left arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Releasing cable duct

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping clip

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection on intake air sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection on left throttle valve

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection on left cam adjuster

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connections on left ignition coils

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection on camshaft pulse sender

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection on pressure converter

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection on injectors

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connections for oxygen sensors

1. 57.1 Loosen tie-wraps -arrows-  .
2. 57.2 On the control unit holder -2-  , loosen clips -arrows-  .
3. 57.3 Remove wiring harness holder -3-  from wiring harness holder.
4. 57.4 Loosen clips -arrows-  from the air-conditioning line holder -5-  .
5. 57.5 Release and disconnect electric plug connections -6 and 7-  on engine control unit.
6. 57.6 Disconnect wire harness -1-  and set it down on the engine.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Disconnecting engine wire harness in front left wheel housing

1. 58.1 Release and disconnect electric plug connections -2 and 3-  on engine control unit.
2. 58.2 Loosen holder -arrows-  on the air-conditioning line holder -4-  .
3. 58.3 Loosen holder -arrows-  and loosen wire harness holder -5-  at the top of the wing.
4. 58.4 Loosen holder -arrows-  for wire harness -1-  on the control unit holder -6-  .
5. 58.5 Open the clip and disconnect vacuum line -7-  from the wiring harness -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Disconnecting engine wire harness in front left wheel housing
