Removing Wire Harness For Electric Steering

  1. Loosen front wheel housing liner at the left -1-  .
    1. 1.1 Unscrew and remove screws -2-  .
    2. 1.2 Move front wheel housing liner at the left -1-  so that the wire harness for electric steering is accessible.
      G15876355Courtesy of PORSCHE CARS NORTH AMERICA, INC.

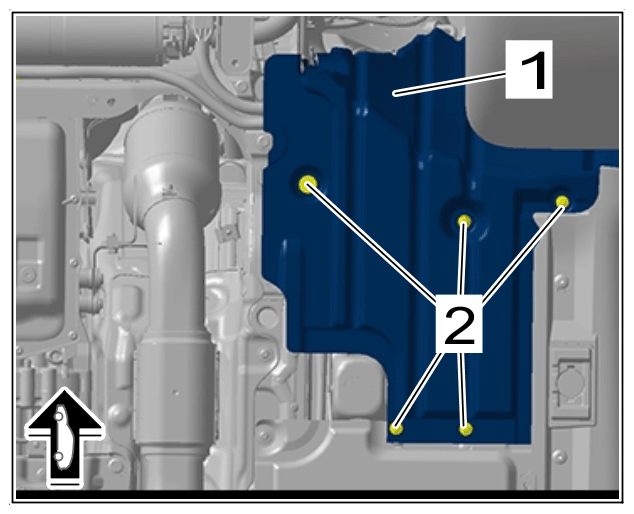

      Front wheel housing liner at the left

  2. Disconnect wire harness for electric steering -1-  .
    1. 2.1 Release and disconnect electric plug connections -2 and 3-  .
    2. 2.2 Unscrew nut on ground point -4-  .
    3. 2.3 Guide wire harness for electric steering -1-  towards the power-steering gear.
      G15876356Courtesy of PORSCHE CARS NORTH AMERICA, INC.

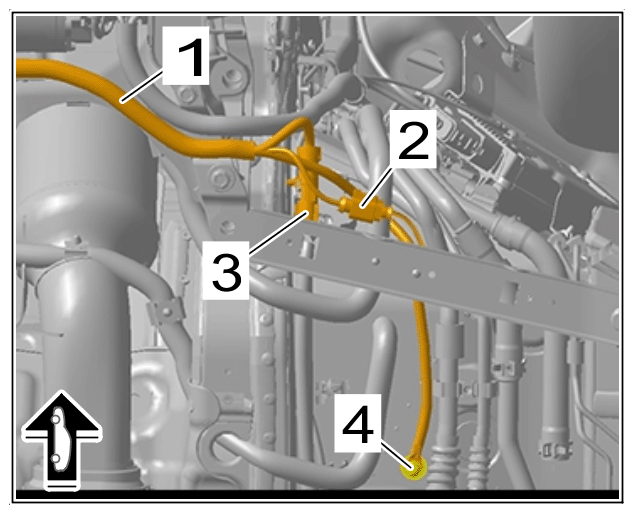

      Wire harness for electric steering

  3. Remove wire harness for electric steering -1-  .
    1. 3.1 Release and disconnect electric plug connections -2-  .
    2. 3.2 Unclip clips -3-  .
    3. 3.3 Remove wire harness for electric steering -1-  .
      G15876357Courtesy of PORSCHE CARS NORTH AMERICA, INC.

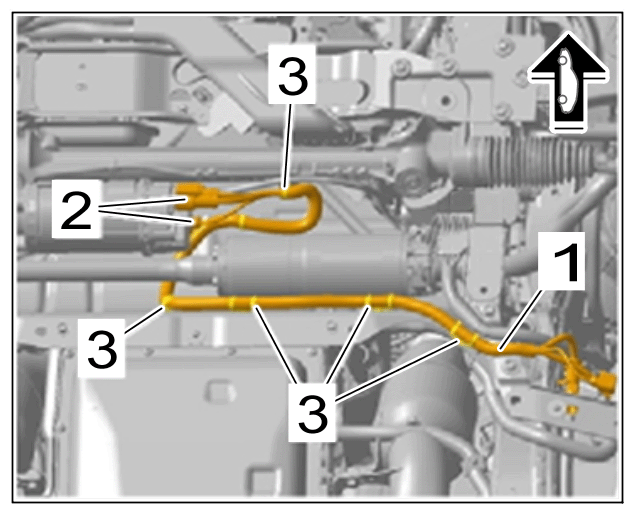

      Wire harness for electric steering on power-steering gear
