Removing Front Wire Harness

Information

The number of electric plug connections and clips will vary depending on equipment.

Information

The front wire harness at the left and right can be removed separately. Perform the required steps at the left and right.

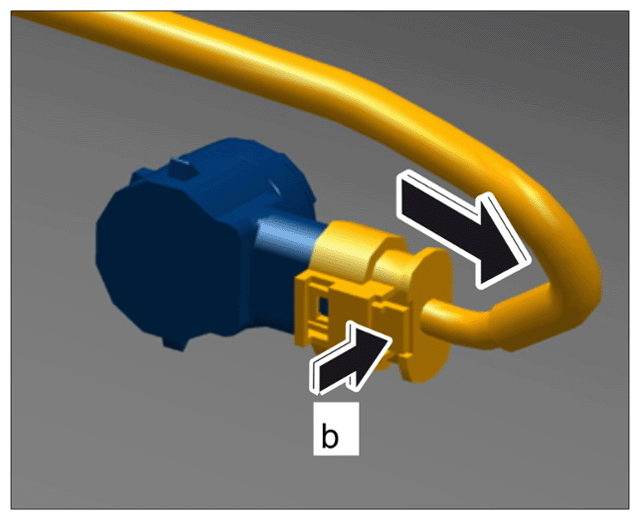

1. Release and disconnect electric plug connection on ParkAssist sensors -arrow b-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Releasing and disconnecting electric plug connections on ParkAssist sensors

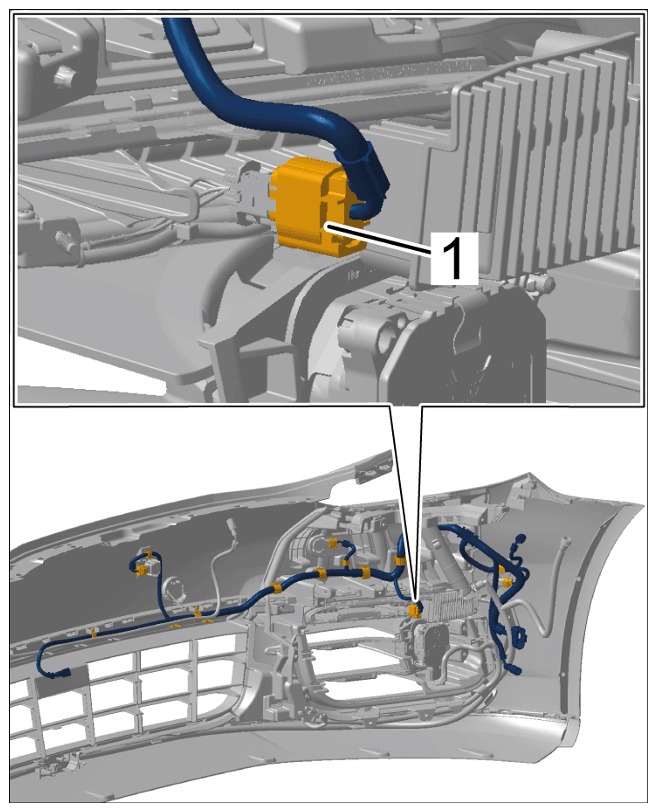

2. Release and disconnect electric plug connection -1-  on auxiliary headlight.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Releasing and disconnecting electric plug connection on auxiliary headlight

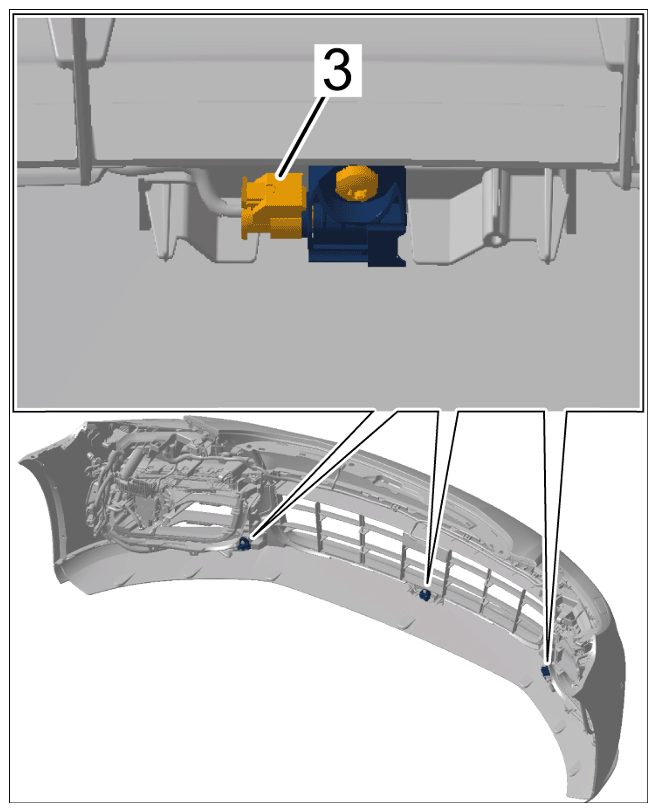

3. Pull out release pin and disconnect electric plug connection -3-  on pedestrian protection sensors.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Releasing and disconnecting electric plug connection on pedestrian protection sensors

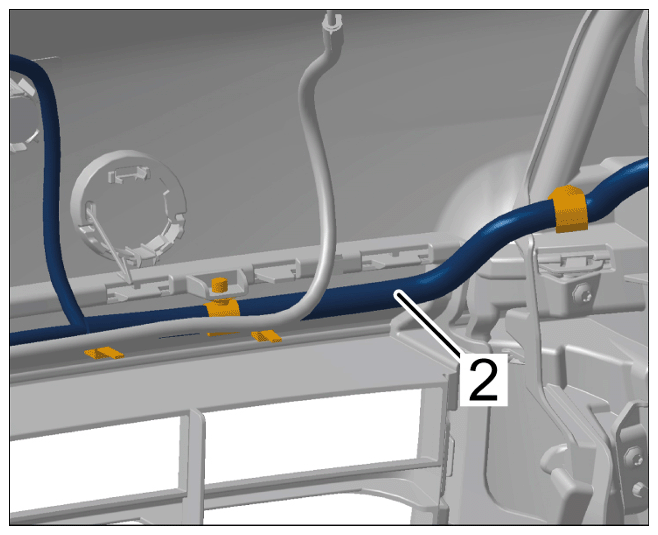

4. Unclip front electric wire harness -2-  all the way around and remove it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unclipping front electric wire harness
