Removing Sub-Part At Rear Underbody (Pasm)

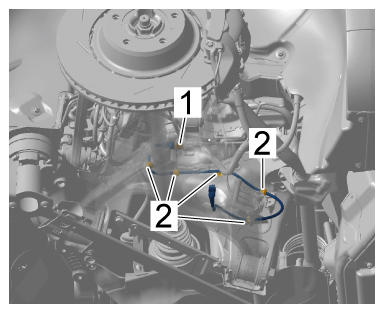

  1. Release and disconnect electric plug connection -1-  for wire harness.
    G15876250Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  2. Unclip electric line from the brackets -2-  and remove it by pulling it downwards.
    G15876251Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric line
