Removing Main Wire Harness At Rear Right Underbody

Information

When cutting the main wire harness at the rear right underbody, make sure that the wire is still long enough for joining new electric lines.

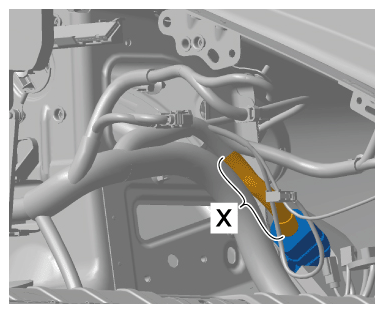

1. Cut main wire harness on rear right underbody in area -x-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Main wire harness on rear right underbody

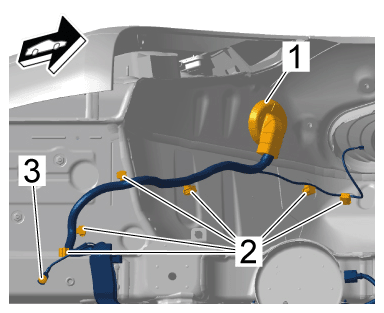

2. Remove rubber sleeve -1-  and pull main wire harness on rear right underbody into the wheel housing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rubber sleeve

3. Loosen holder -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bracket

4. Unscrew screw -3-  and remove ground line.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screw

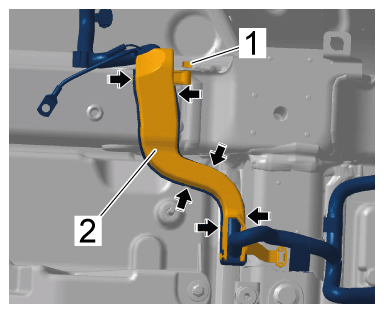

5. Unscrew and remove screw -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screw

6. Release locking lugs from the cable duct -2-  and remove cover -arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cable duct

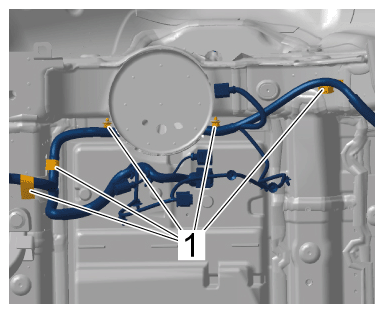

7. Loosen holder -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bracket

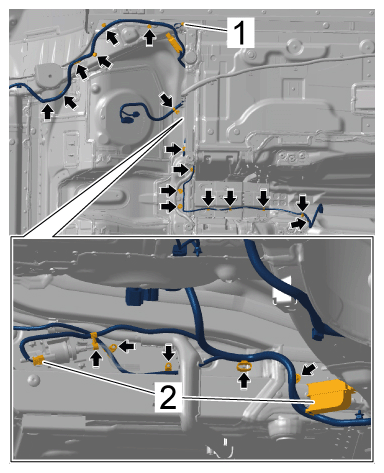

8. Loosen holder -arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bracket

9. Unscrew and remove screw -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screw

10. Release and unplug electric plug connections -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections

11. Remove main wire harness at rear right underbody.
