Subsequent Work

  1. Install mobile phone antenna amplifier in right A-pillar.

    > 914519 REMOVING AND INSTALLING MOBILE PHONE ANTENNA AMPLIFIER

  2. Install loudspeaker amplifier.

    > WM, 914119 REMOVING AND INSTALLING FRONT LOUDSPEAKERS (DOOR)

  3. Install sound absorber for tunnel.
  4. Install airbag triggering unit.

    > 695319 REMOVING AND INSTALLING AIRBAG TRIGGERING UNIT

  5. Install air vent under passenger's seat.

    > 887519 REMOVING AND INSTALLING AIR VENT

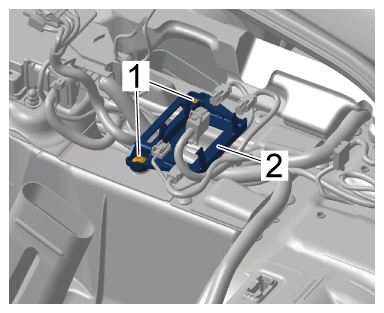

  6. Position USB/IPOD control unit holder -2-  and screw in and tighten screws -1-  > Tightening torque 8 Nm (6 ftlb.)
    G15876229Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screwing in screws

  7. Install USB/IPOD control unit.

    > 919319 REMOVING AND INSTALLING USB/IPOD CONTROL UNIT

  8. Secure the headliner.

    > WM, 708419 REMOVING AND INSTALLING ROOF TRIM PANEL

  9. Install PCC/PVTS control unit.

    > 906419 REMOVING AND INSTALLING PCC/PVTS CONTROL UNIT

  10. Fit carpet at the right.

    > 704119 REMOVING AND INSTALLING CARPET

  11. Connect the battery.

    > Work instructions after disconnecting the battery
