Securing Main Wire Harness In Wheel Housing At The Right

First lay the main wire harness loosely, ensuring that it is positioned correctly.
Clip in main wire harness as well as electric lines coming from it.

The remaining installation steps are performed in reverse order. Pay particular attention to the following:

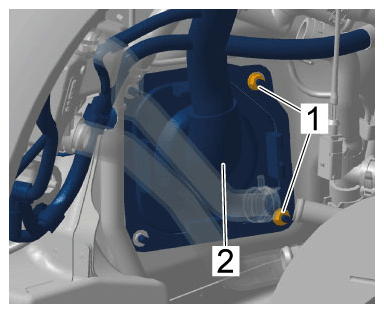

3.1 Tightening torque for nuts -1- securing grommet to the body: > Tightening torque 6.7 Nm (4.8 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing grommet on the body

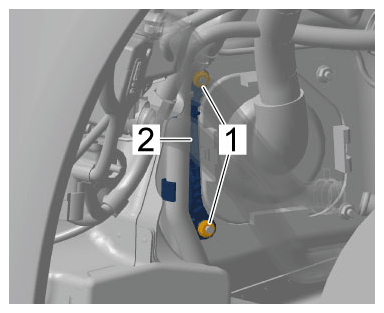

3.2 Tightening torque for nuts -1- on hose holder: > Tightening torque 6.7 Nm (4.8 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screwing on nuts

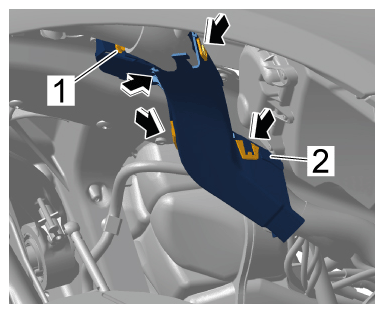

3.3 Tightening torque for screw -1- on cable duct: > Tightening torque 4.5 Nm (3.25 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing main wire harness on cable duct

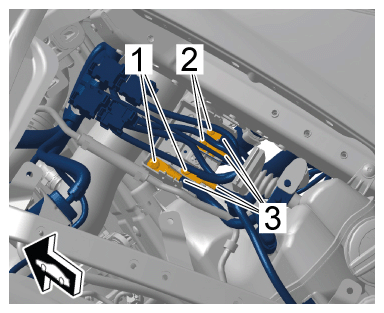

3.4 Tightening torque for screws -1- and -2- securing positive lines in fuse box: > Tightening torque 8 Nm (6 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screwing in screws
