Securing Main Wire Harness In Wheel Housing At The Left

First lay the main wire harness loosely, ensuring that it is positioned correctly.
Clip in main wire harness as well as electric lines coming from it.

The remaining installation steps are performed in reverse order. Pay particular attention to the following:

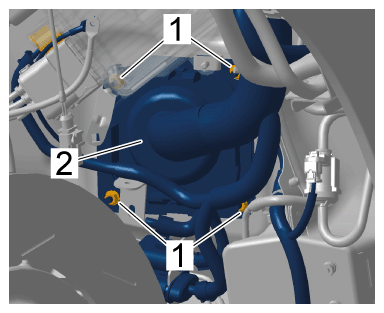

3.1 Tightening torque for nuts -1- securing grommet to the body: > Tightening torque 6.7 Nm (4.8 ftlb.)

G15876173

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing grommet to the body

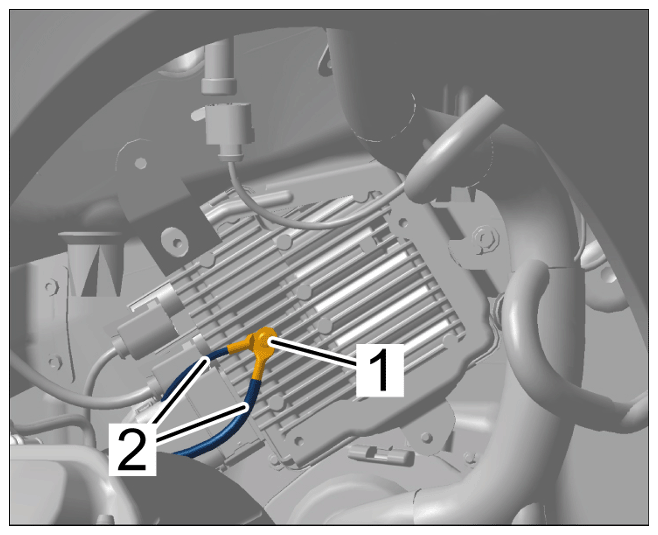

3.2 Tightening torque for screw -1- securing ground lines to PDCC control unit: > Tightening torque 5.6 Nm (4 ftlb.)

G15876174

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing ground lines

3.3 Tightening torque for screws -1- on cable duct: > Tightening torque 4.5 Nm (3.25 ftlb.)

G15876175

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing main wire harness to cable duct

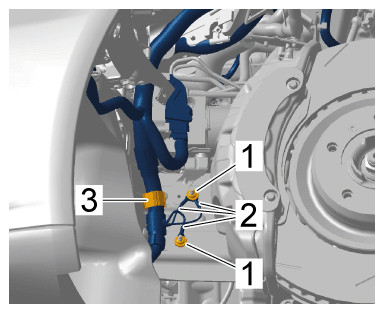

3.4 Tightening torque for nuts -1- securing ground lines to longitudinal member: > Tightening torque 9 Nm (6.5 ftlb.)

G15876176

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screwing on nuts

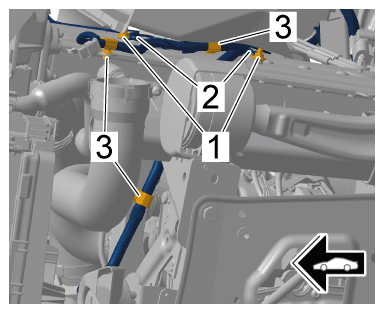

3.5 Tightening torque for nuts -1- securing ground lines to longitudinal member: > Tightening torque 9 Nm (6.5 ftlb.)

G15876177

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screwing on nuts

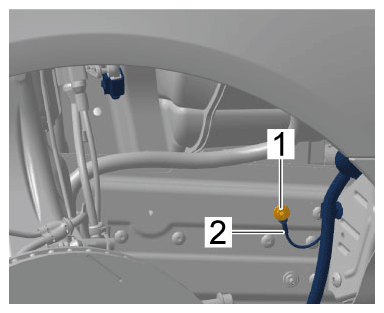

3.6 Tightening torque for nut -1- securing ground line to longitudinal member: > Tightening torque 9 Nm (6.5 ftlb.)

G15876178

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screwing on nut
