Removing Rear KESSY Antenna

  1. Remove clip -2-  and move holder -3-  with electric plug connections aside.

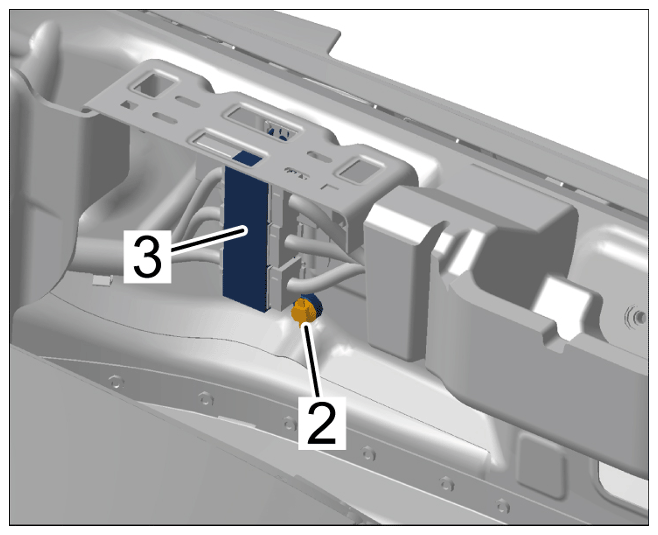

    G15876042Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Loosening holder

  2. Unscrew screws -4-  , remove rear KESSY antenna -1-  and release and disconnect electric plug connection -5-  .

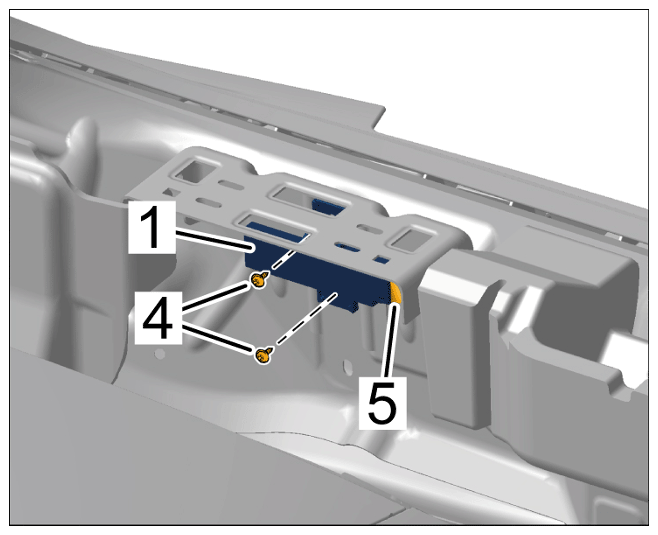

    G15876043Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing rear KESSY antenna
