Removing KESSY Antenna On Rear Centre Console

  1. Remove expanding clips -2-  and release and disconnect electric plug connection -3-  .
    G15876049Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Releasing and pulling off electric plug connection

  2. Remove KESSY antenna on rear centre console -1-  .

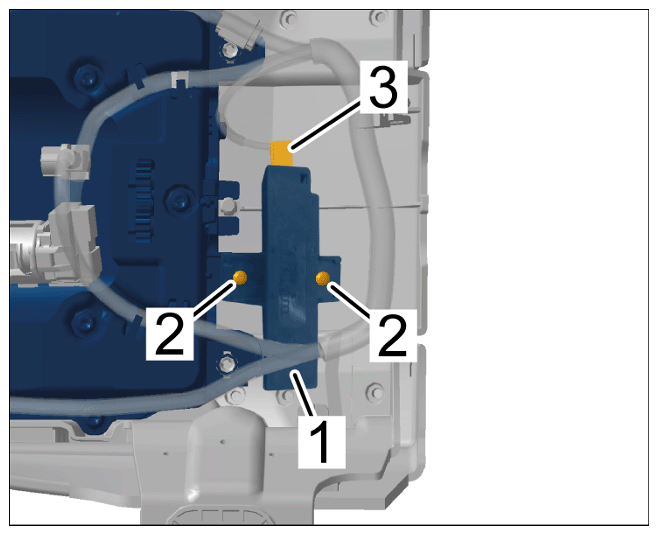

    G15876050Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing KESSY antenna from rear centre console
