Removing KESSY Antenna On Front Centre Console

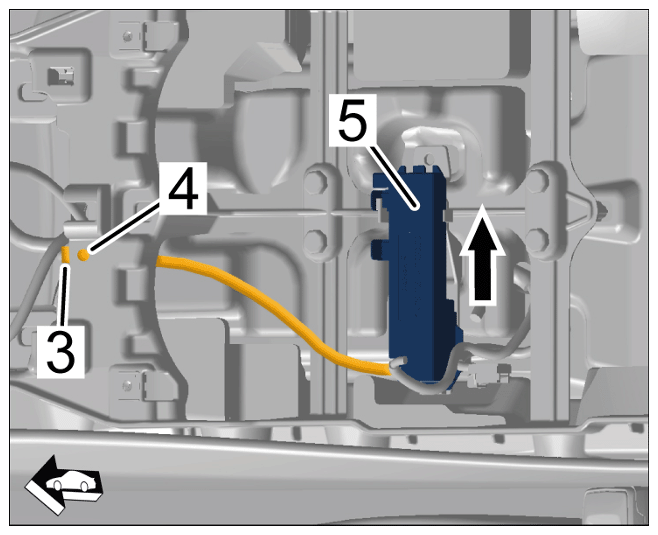

  1. Release and unplug electric plug connection -3-  .
    G15876038Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Releasing and pulling off electric plug connection

  2. Unclip line bracket -4-  and unclip KESSY antenna -5-  (-arrow-  ).
    G15876039Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unclipping KESSY antenna
