Removing Plug Socket In Rear Centre Console

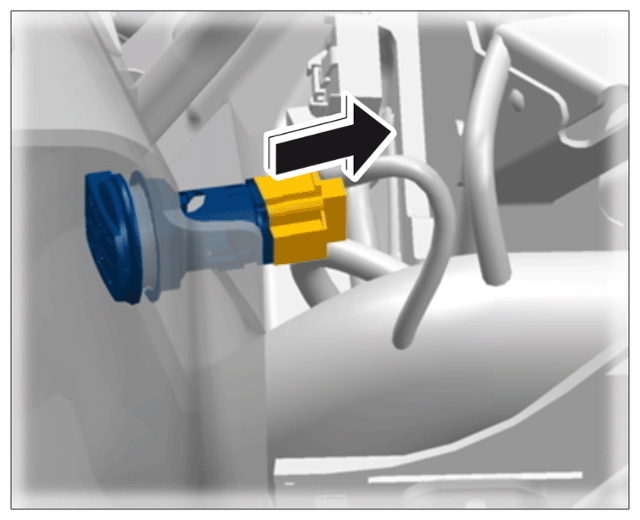

  1. Unplug electrical plug connection -arrow-  .
    G15875620Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pulling off electric plug connection

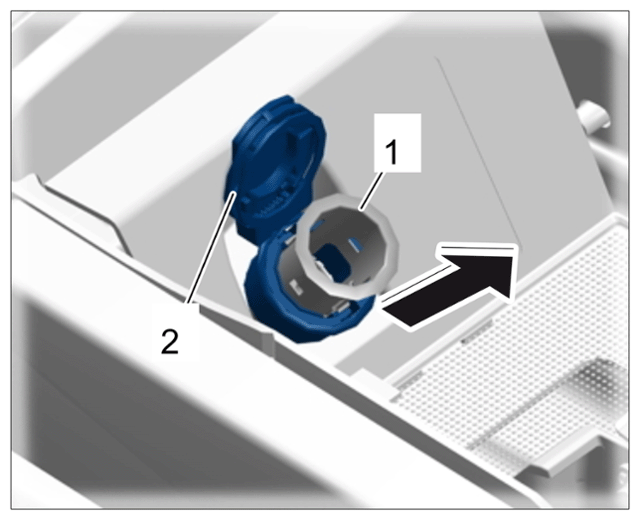

  2. Open the cover -2-  and press out the plug socket -1-  using a screwdriver.
    G15875621Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing plug socket in centre console
