Removing 230-Volt Plug Socket In Luggage Compartment

  1. Unclip plug socket from cover on side trim panel in luggage compartment.

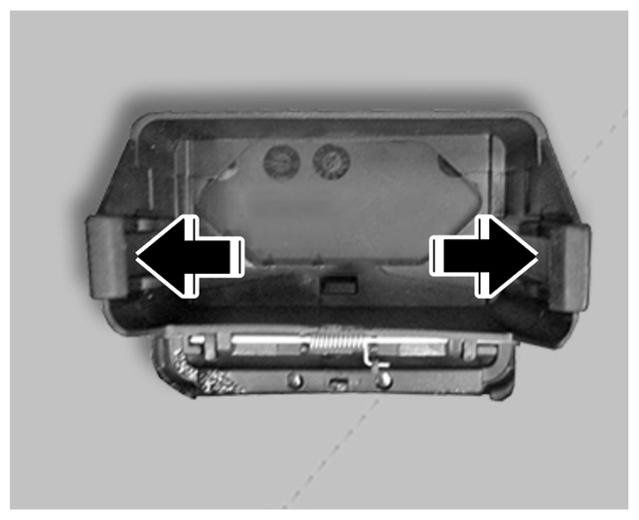

    G15875615Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unclipping plug socket

  2. Remove plug socket connection by pulling it to the rear out of the luggage compartment trim panel.
  3. Release and disconnect electric plug connection on inverter.
  4. Loosen fastening screws on inverter and remove inverter with wiring harness for plug socket.
