Removing Horn

Information

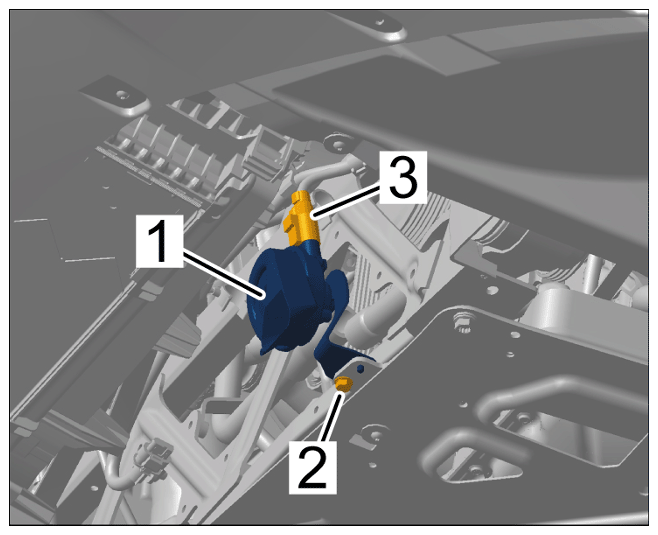

Illustration shows driver's side; same procedure for passenger's side.

  1. Remove horn.
    1. 1.1 Release and disconnect electric plug connection -3-  .
    2. 1.2 Unscrew and remove screw -2-  .
    3. 1.3 Remove horn -1-  .
    G15875613Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unscrewing screw
